MISSILE SILO
SITE 4

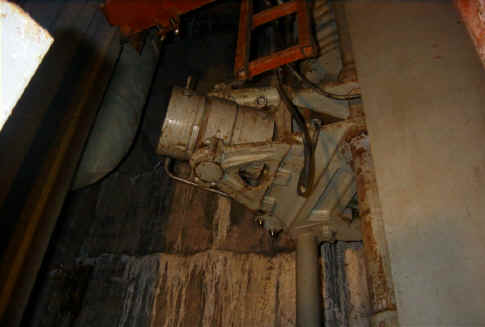

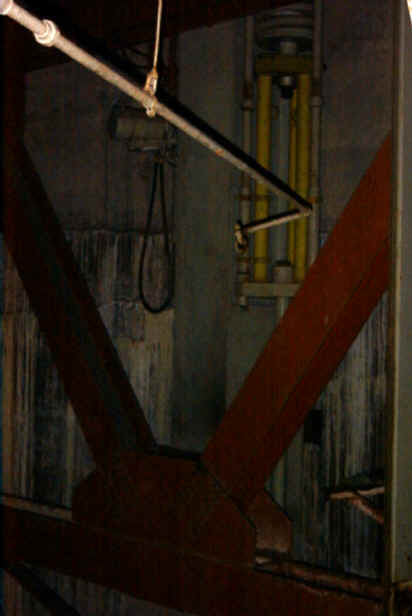

VERTICAL CRIB LOCK ATTACHED TO STRUT

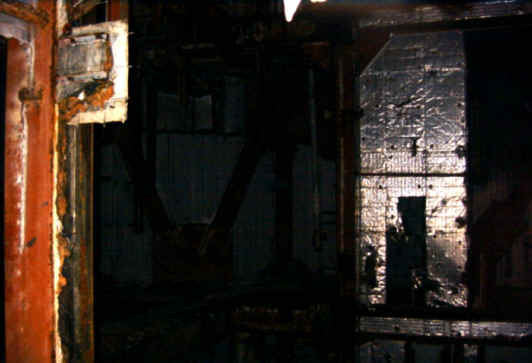

LOOKING INTO MISSILE ENCLOSURE AREA WITH ELEVATOR ACCESS

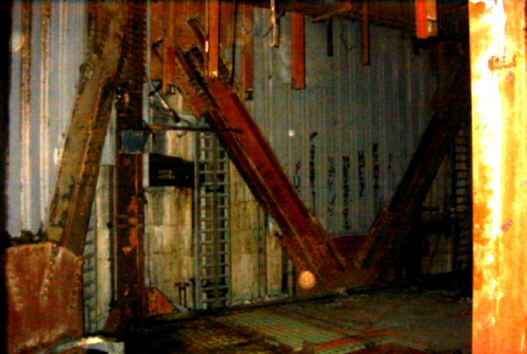

CONNECTION POINT FOR CRIB FRAME WITH SUSPENSION SYSTEM
OUR CABLE TRAY ENTRANCE
NOTE: METAL SIDING SURROUND LEVEL 5

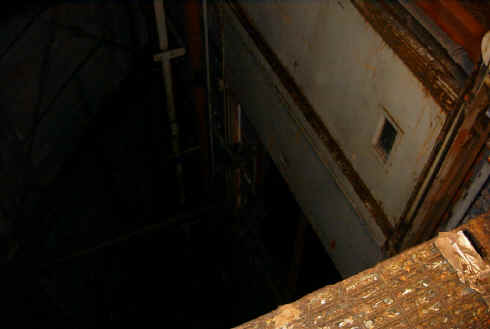

LOOKING DOWN ON LEVEL 6
EXHAUST DUCT OPENING FOR DIESEL GENERATOR
SPIRAL STAIRCASE HAS FALLEN

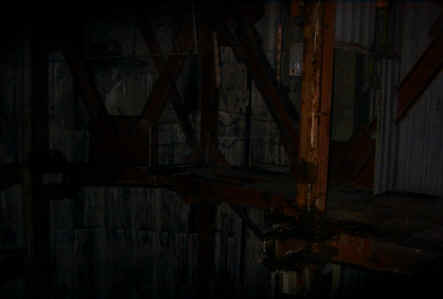

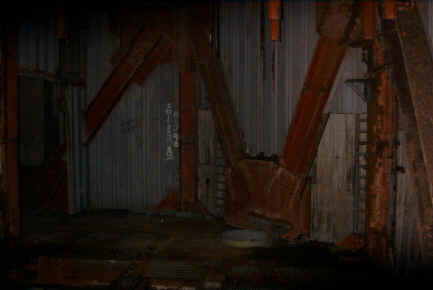

CRIB FRAME

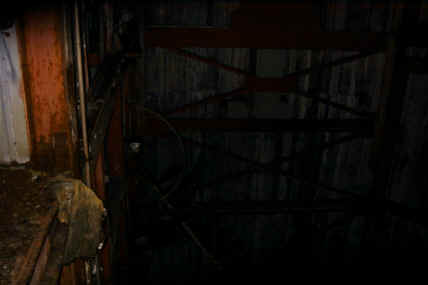

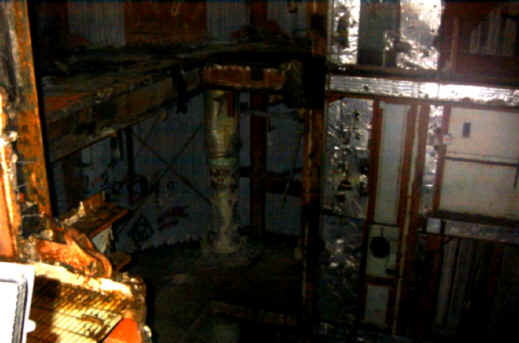

AREA WHERE SPIRAL STAIRCASE ONCE STOOD

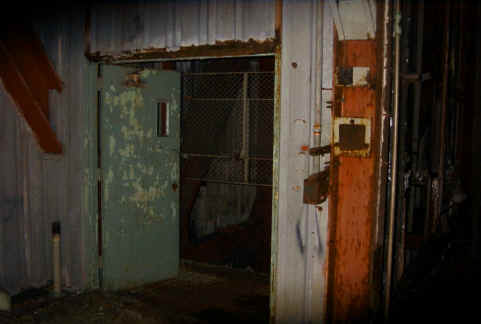

ENTRANCE TO ELEVATOR
THE ELEVATOR HAS BEEN REMOVED

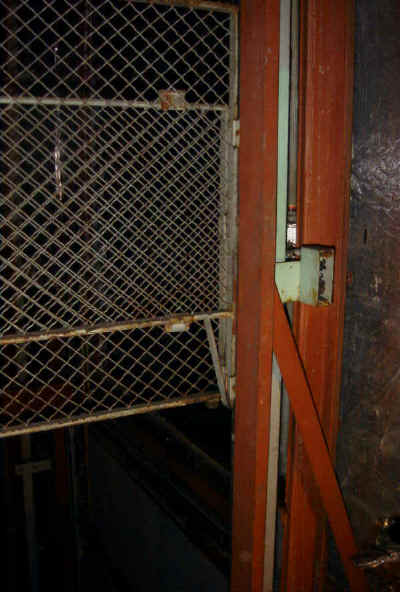

ON THIS FLOOR, THE ELEVATOR PLATFORM COULD BE OPENED IN TWO DIFFERENT DIRECTIONS

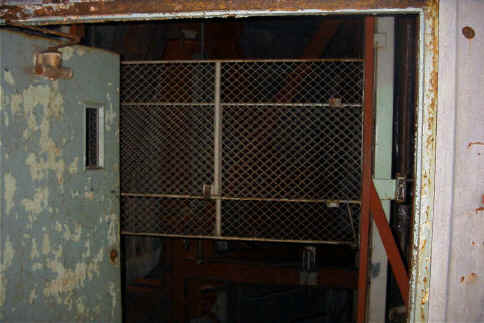

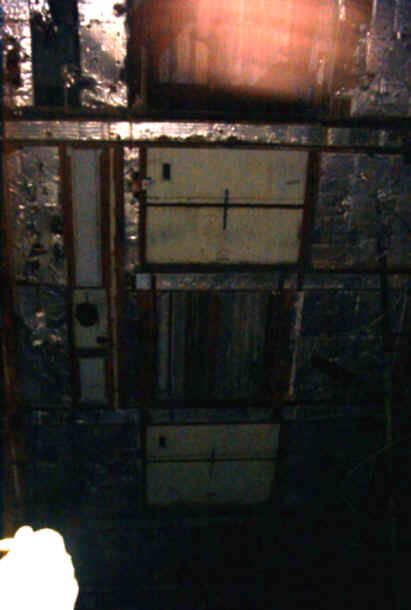

ELEVATOR SHAFT WITH DOOR TO MISSILE ENCLOSURE AREA
VERTICAL CRIB LOCK
TOP OF ROOM THAT HELD THE COLLMINATOR SIGHT TUBE

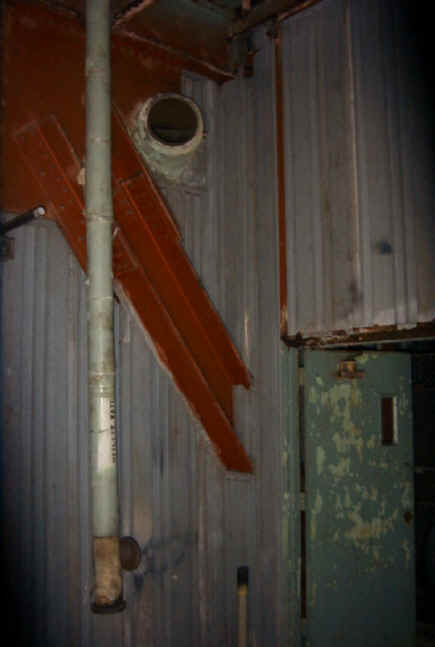

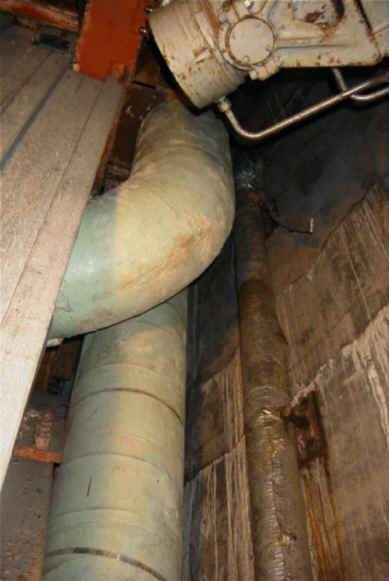

DIESEL EXHAUST DUCT
NOTE: OTHER DUCT IS FOR DIESEL EXHAUST LEVEL 6

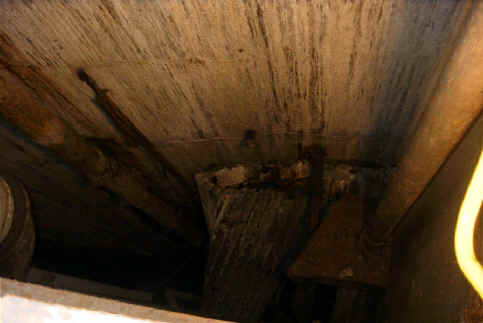

LOOKING DOWN AT LEVEL 8
