WALKER AFB
ROSWELL, NEW MEXICO
579th STRATEGIC MISSILE SQUADRON
SITE 12
INTERIOR PHOTOS
ENTRYWAY STAIRS
LIGHT SWITCH FOR EXTERIOR VENT LIGHTS
ELECTRICAL BOX FOR THE THREE VENT LIGHTS
COVER PLATE FOR ELECTRICAL LINES
ENTRAPMENT AREA DOOR
ENTRAPMENT AREA FINAL DOOR
BACKSIDE OF FINAL ENTRAPMENT AREA DOOR
NOTE: ROUND HOLE FOR VIDEO CAMERA

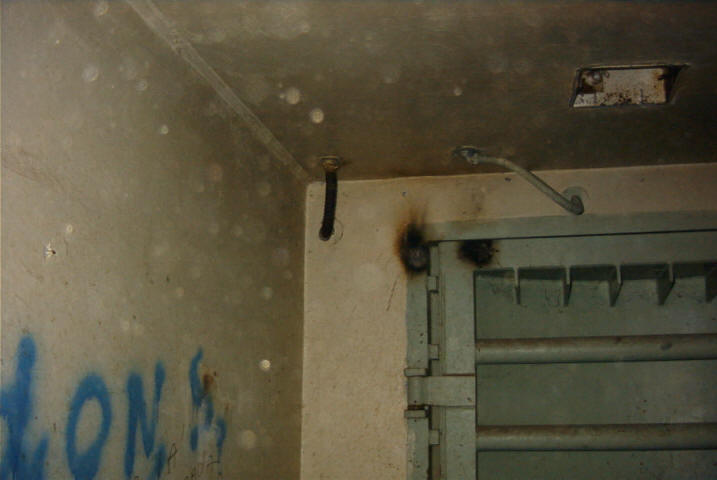

FIRST BLAST DOOR
FIRST BLAST DOOR
BLAST DOOR INTERLOCK
BLAST VESTIBULE ELECTRICAL
ELECTRICAL LINES
ELECTRICAL LINES FROM STAIRWELL
BLAST VESTIBULE LIGHT FIXTURE
BLAST VESTIBULE ELECTRICAL LINE FROM STAIRWELL
UPPER STAIRWELL BLAST VALVE
STAIRWELL
SEWER SUMP DISCHARGE & VENT LINE
NOTE: BRACKET FOR EMERGENCY BACKUP LIGHT
UPPER STAIRWELL BLAST VALVE
UPPER LEVEL LAUNCH CONTROL CENTER RESTROOM
NOTE: BLAST DETECTION LINES
AIR EXHAUST BLAST VALVE
HVAC EQUIPMENT AREA LIGHT
UPPER LEVEL LAUNCH CONTROL CENTER
NOTE: SEWER SUMP VENT MISSING 3" BLAST VALVE
UPPER LEVEL SUPPORT COLUMN
ESCAPE HATCH COVER
AIR INTAKE BLAST VALVE
DIRECT BURIAL LINE FOR MAIN GATE CONTROL BOX
FLOOR BELOW ESCAPE HATCH
ESCAPE HATCH COVER
KITCHEN WALL
KITCHEN DOORWAY
SUPPORT COLUMN
SEWER VENT LINE
UTILITY ROOM
LINES ENTERING THE SITE
COMMUNICATION MANHOLE LINES
BLAST DETECTION LINES ON THE RIGHT
STAIRWELL TO LOWER LEVEL
STAIRWELL LIGHTING
NOTE: COPPER AIR LINE FOR BLAST VALVES
SEWER SUMP VALVES
NOTE: SECTION OF STAIRWELL HANDRAIL THAT HAS FALLEN
UTILITY TUNNEL WITH CLOSED FIRE & DEBRIS DOOR
