LAUNCH AND SERVICE BUILDING

OPERATIONAL SYSTEMS TEST FACILITY  1

576th  SMS  SITE  F

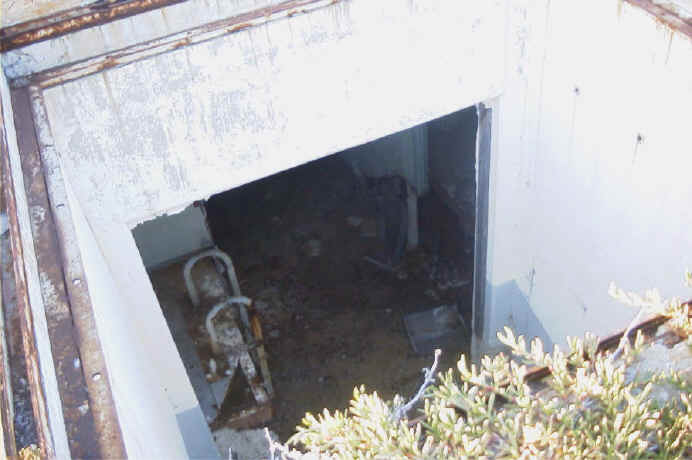

OPEN DOOR LEADS TO LIQUID OXYGEN ROOM

NOTE:  CIRCULAR OPENING WAS FOR A LARGE LIQUID OXYGEN STORAGE TANK

FLAME DEFECTION PIT ON RIGHT

NOTE:  MISSILE ERECTION EQUIPMENT LOCATED ON OTHER SIDE OF OPEN DOOR

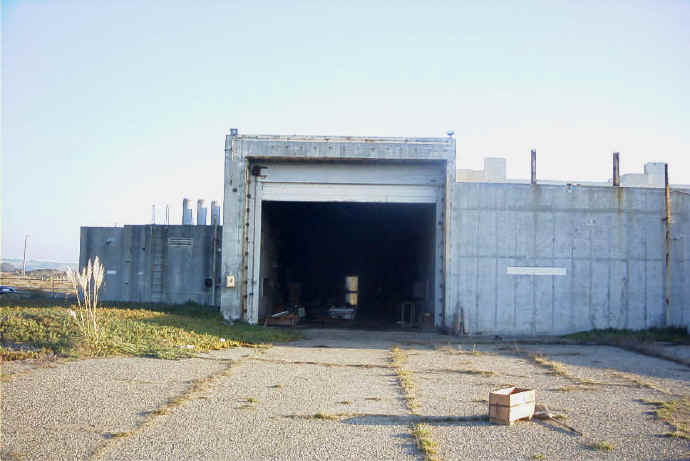

MISSILE ENTRY DOOR OPEN

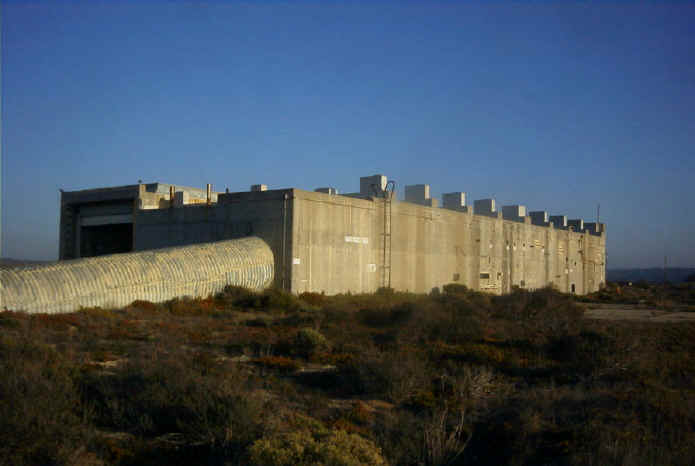

NOTE:  CABLE TUNNEL LEADING TO LAUNCH OPERATIONS BUILDING

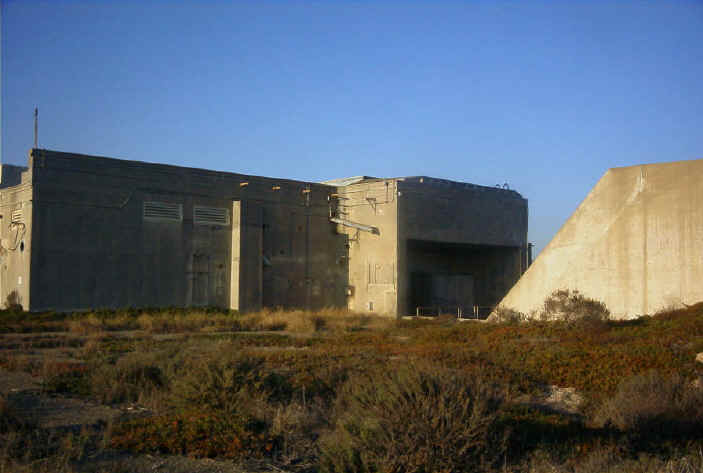

EQUIPMENT SHAFT FOR LAUNCH OPERATIONS BUILDING

NOTE:  CABLE TUNNEL LEADS TO THE RIGHT

MISSILE ENTRY DOOR LEADING TO MISSILE BAY

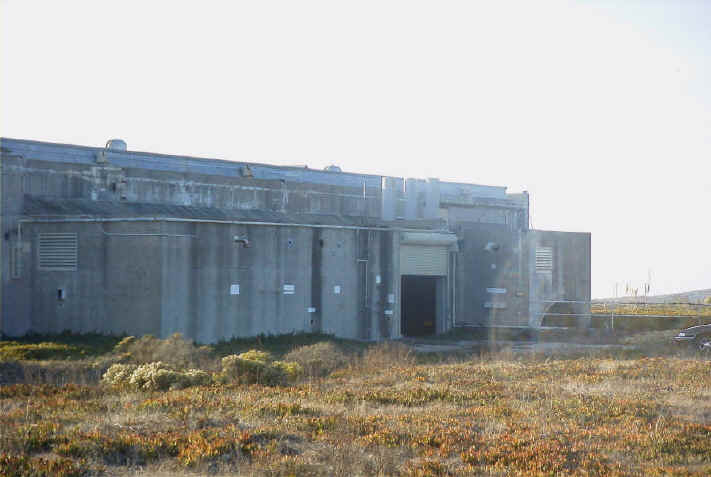

NOTE:  LIQUID OXYGEN ROOM ON LEFT AND MECHANICAL/ELECTRICAL ROOM ON RIGHT

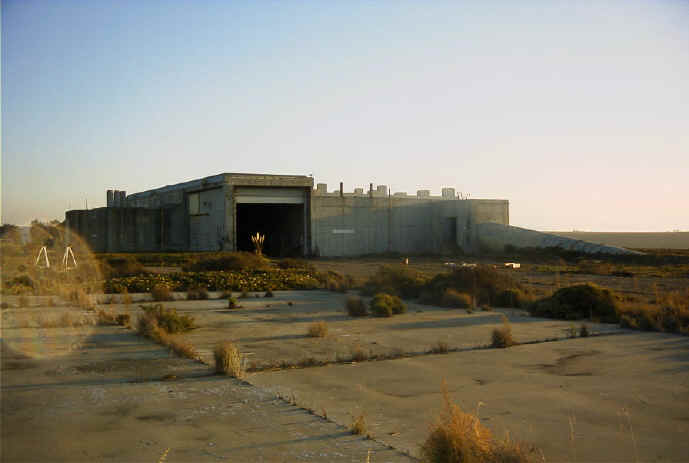

LOOKING FROM UTILITY BUILDING PAD TO LAUNCH AND SERVICE BUILDING

NOTE:  MISSILE BAY LAUNCH DOOR IS THE ROOF WHICH SLIDES TO THE RIGHT
