DELTA-1



LAUNCH CONTROL FACILITY

ELLSWORTH AFB

MINUTEMAN

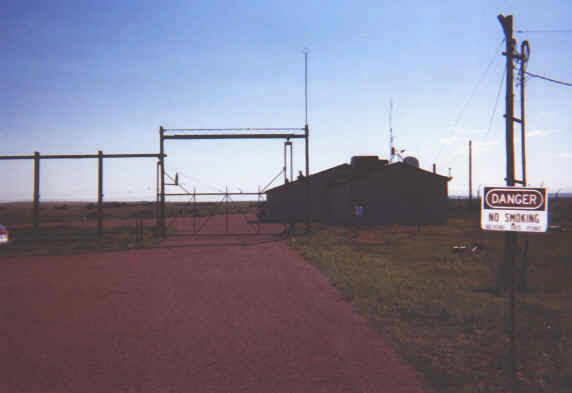

MAIN GATE



LAUNCH CONTROL SUPPORT BUILDING

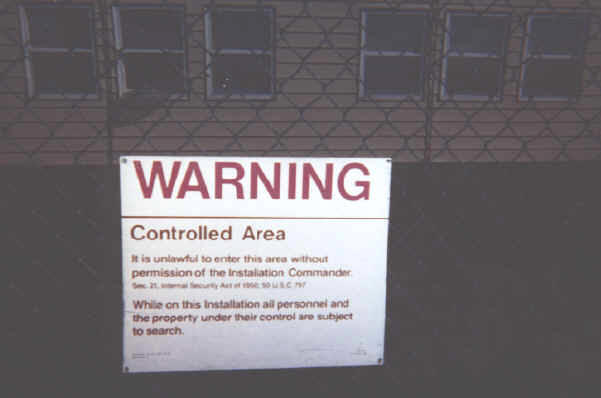

ORIGINAL SIGNAGE

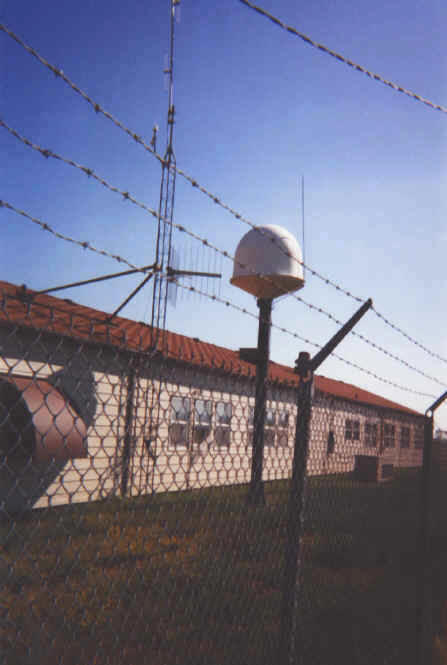

UHF ANTENNA

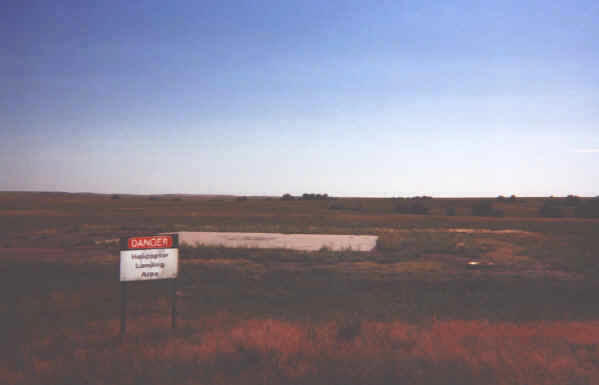

HELICOPTER LANDING AREA

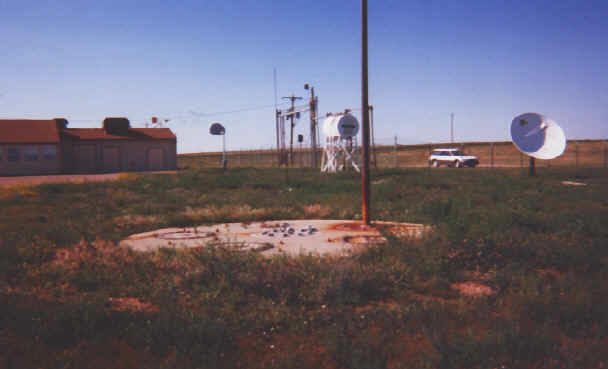

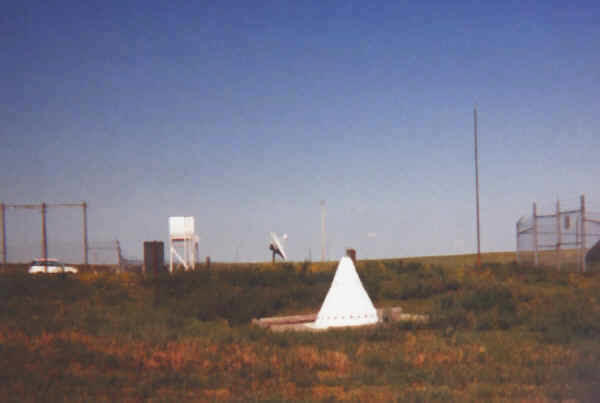

HARD HIGH FREQUENCY RECEIVE ANTENNAS

NOTE:  ONCE FIRED THEY'RE LOCKED IN PLACE AND WOULD REQUIRE A MAINTENANCE CREW TO REPACK AND RECHARGE THE MECHANISM FOR THOSE ANTENNAS.  THE SQUADRON COMMAND POSTS (E-01 AND J-01) HAD A SOFT HF ANTENNA IN ADDITION TO THESE 5 HARDENED ONES.  THE ALTERNATE COMMAND POST (K-01) WAS SIMILARLY CONFIGURED.

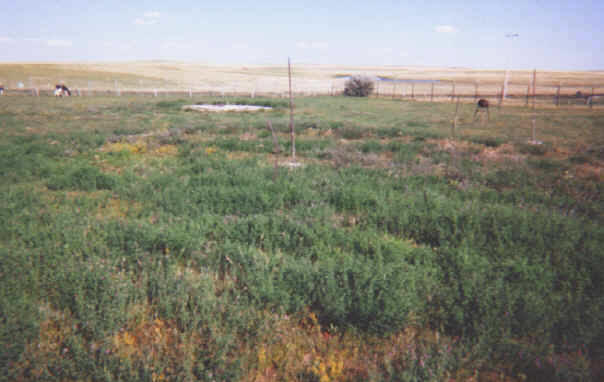

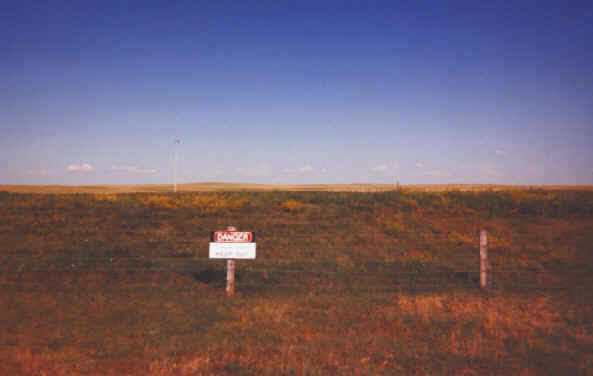

OUTER AREA OF SITE
