SILO



TITAN I  MISSILE BASE

DIAGRAMS

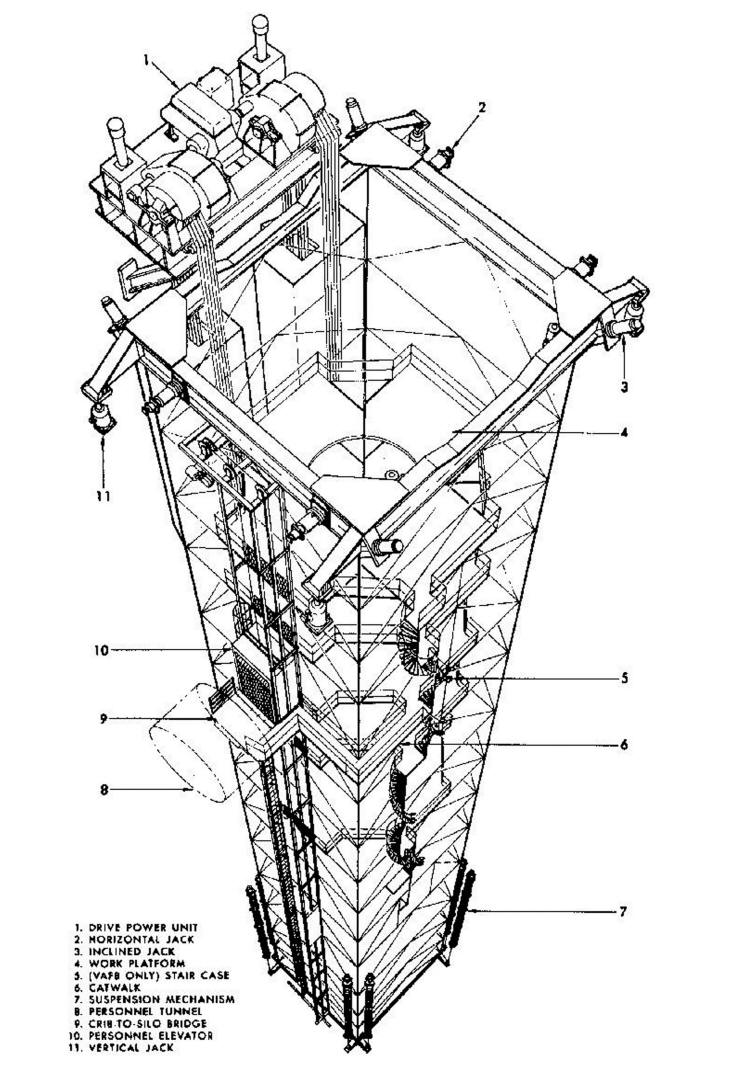

SILO CRIB

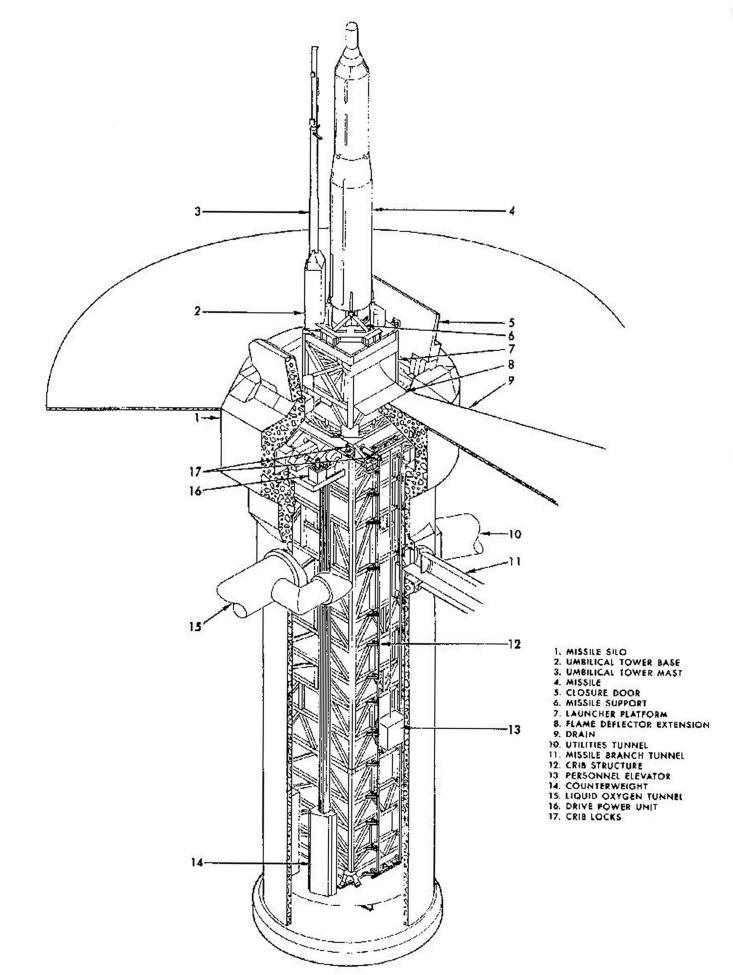

MISSILE SILO

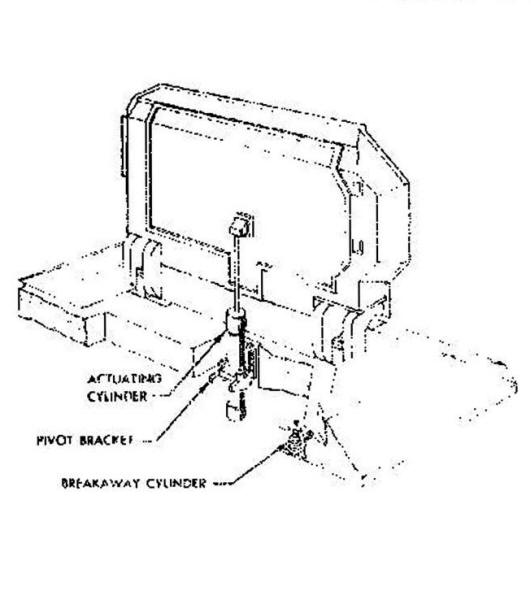

SILO DOORS

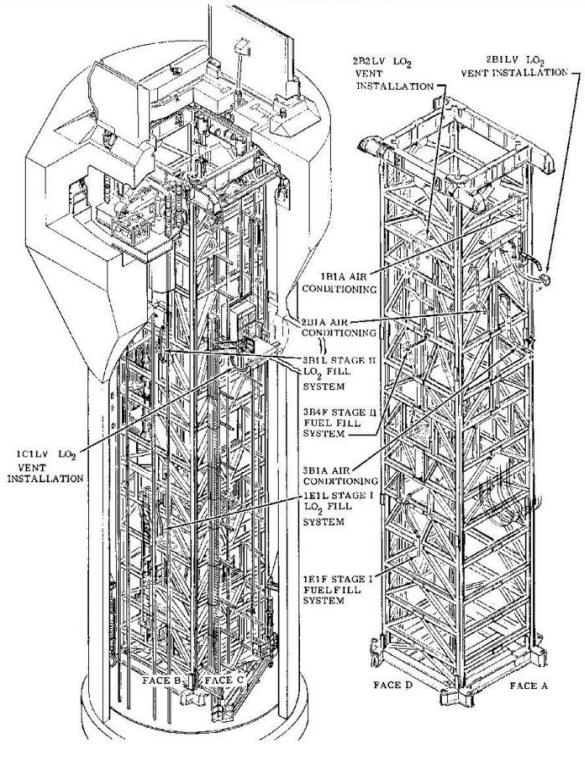

SILO CRIB

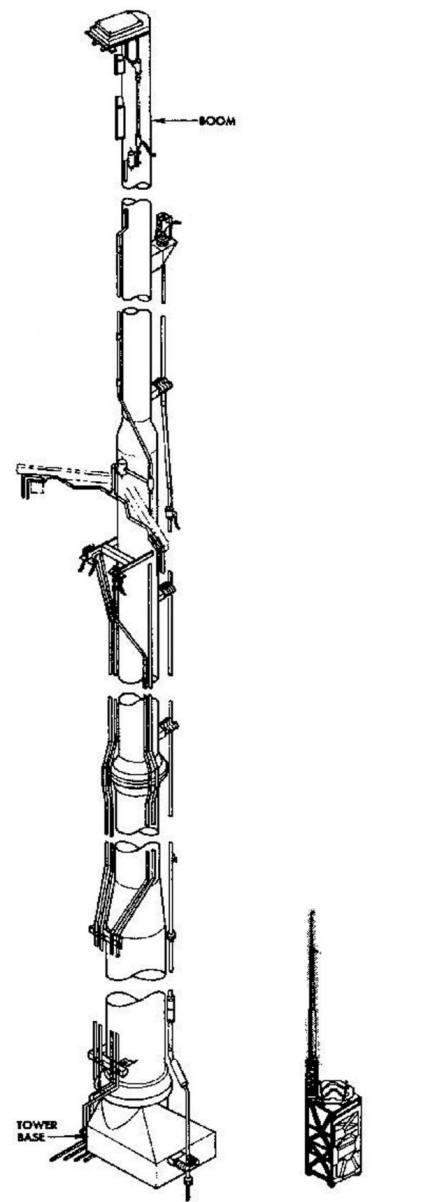

UMBILICAL TOWER

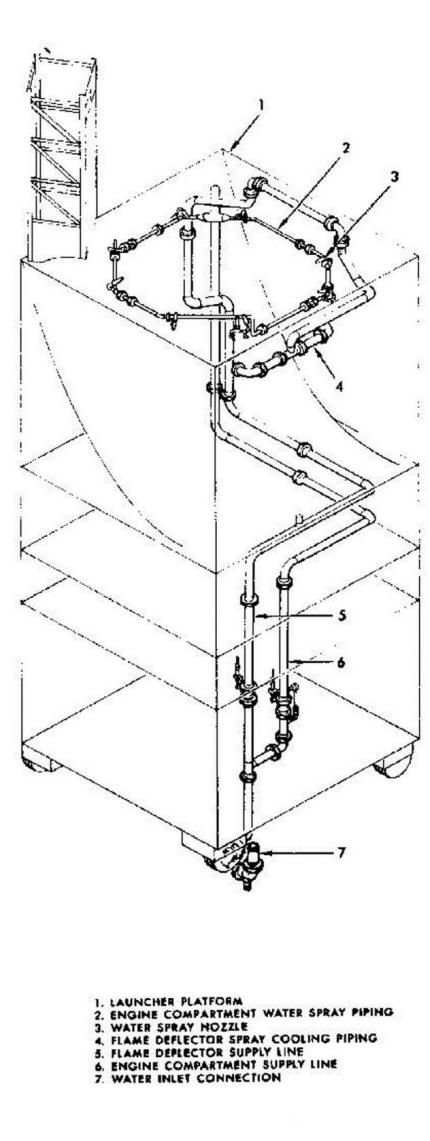

LAUNCHER PLATFORM

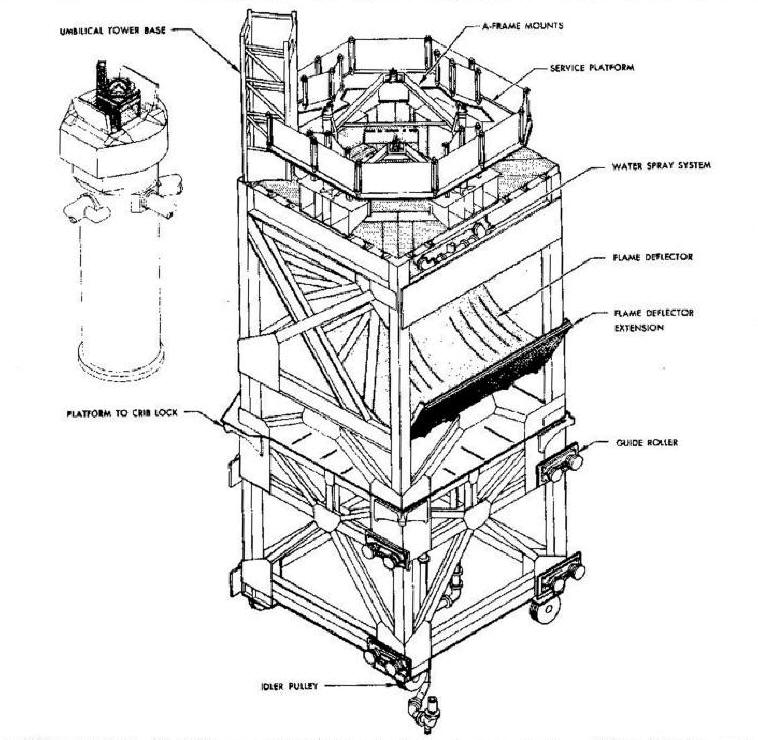

LAUNCHER PLATFORM

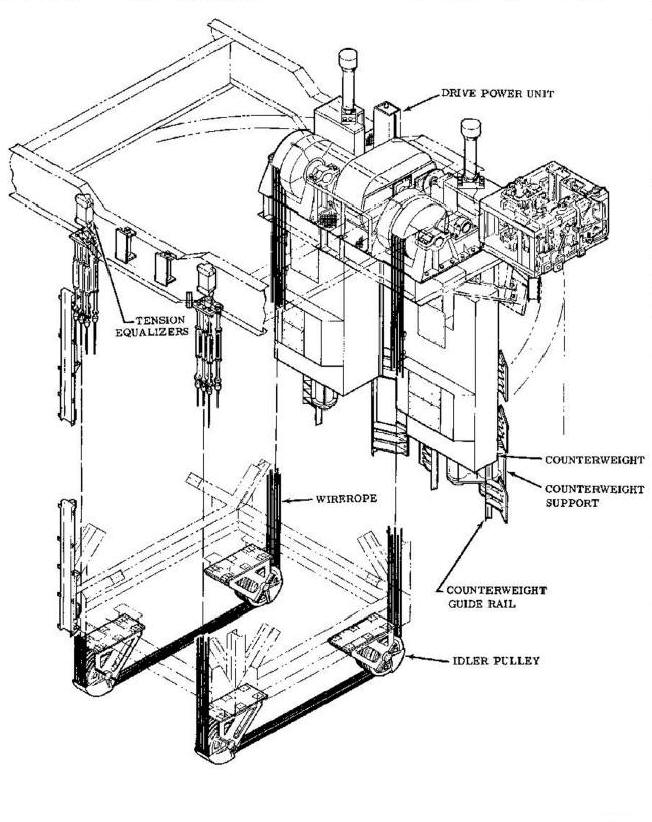

LAUNCHER PLATFORM DRIVE SYSTEM  395A

VANDENBERG AFB





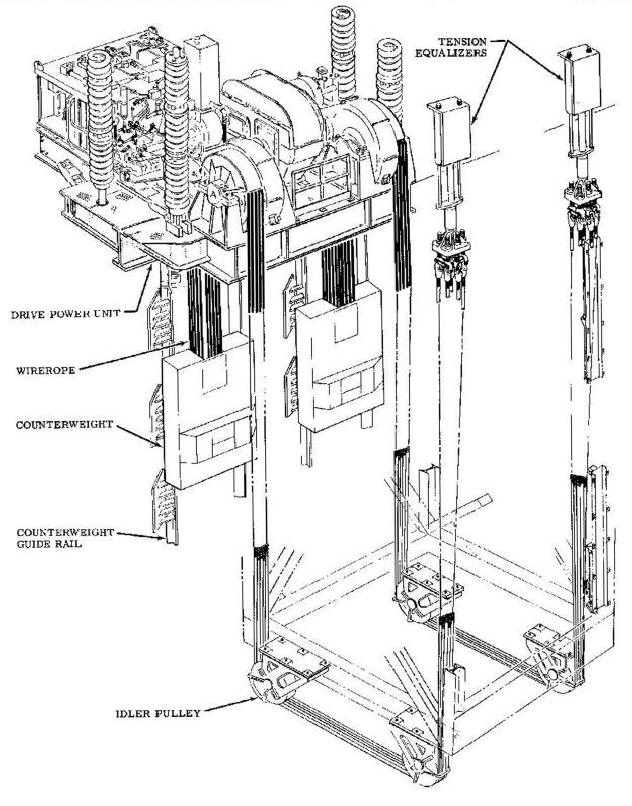

LAUNCHER PLATFORM DRIVE SYSTEM
