TITAN I
MISSILE BASE CONSTRUCTION
851st STRATEGIC MISSILE SQUADRON
BEALE AFB
MARYSVILLE, CALIFORNIA
UNITED STATES ARMY CORPS OF ENGINEERS
CONSTRUCTION HISTORY PHOTOS

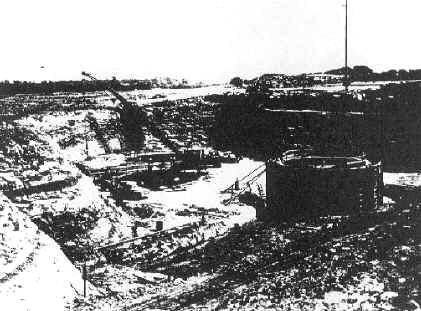

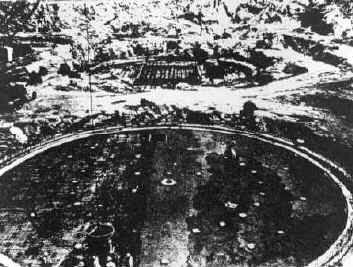

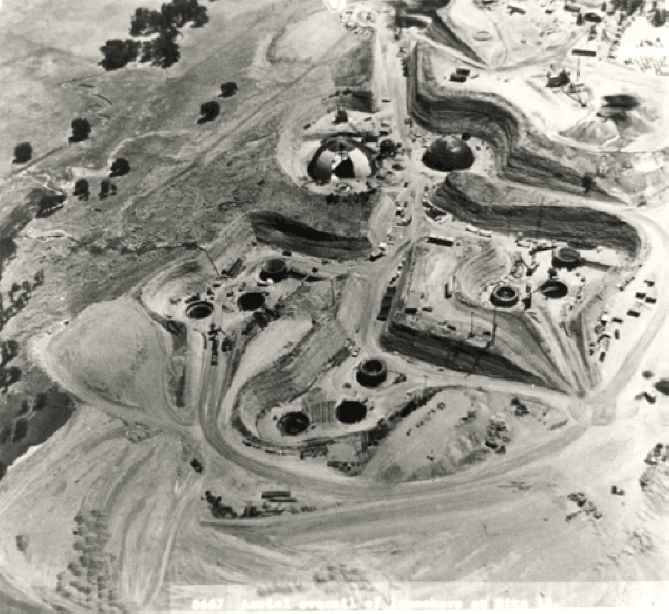

AERIAL SITE 1A LINCOLN
AERIAL SITE 1A LINCOLN

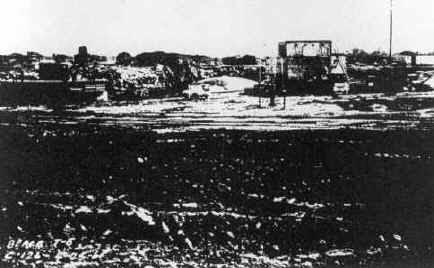

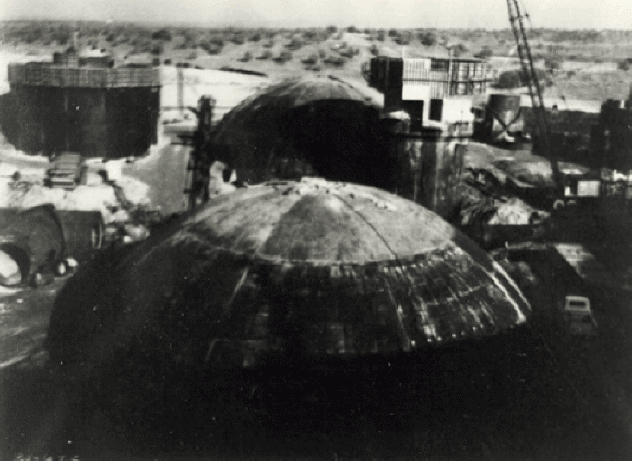

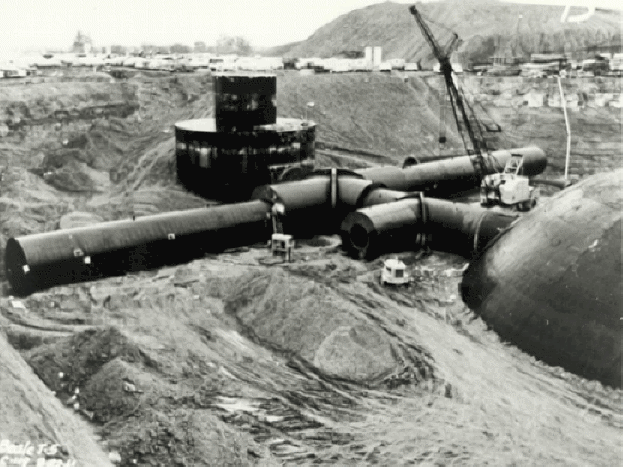

SITE 1A LINCOLN

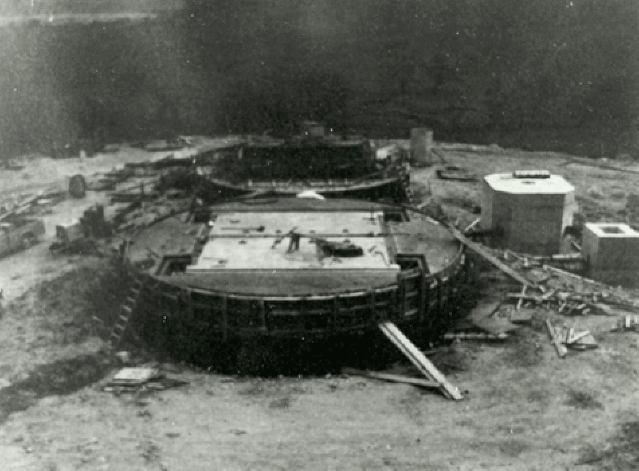

LAUNCHER #1

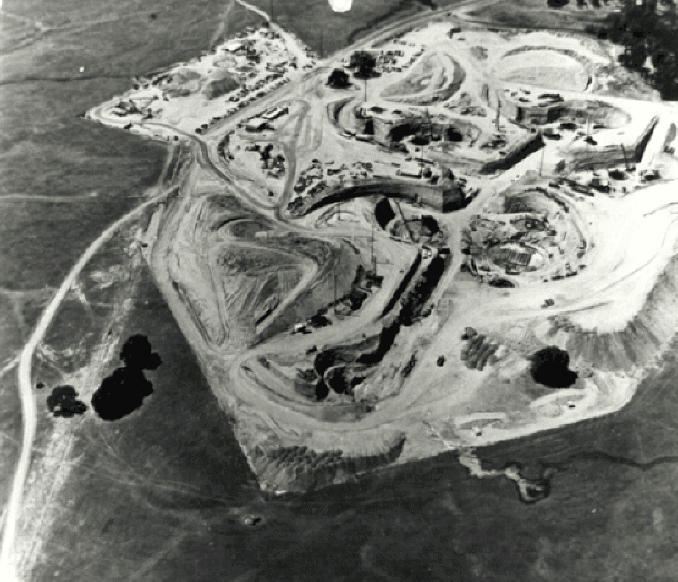

AERIAL SITE 1A LINCOLN

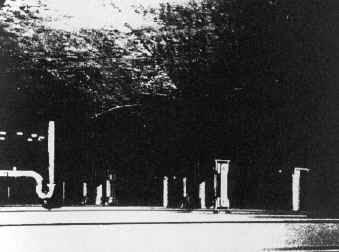

ANTENNA SILOS

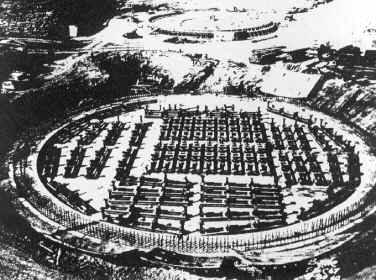

AERIAL SITE 2A LIVE OAK / SUTTER BUTTES

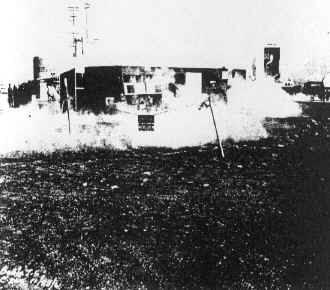

POWER HOUSE
AERIAL SITE 2A LIVE OAK / SUTTER BUTTES
AERIAL SITE 1C CHICO

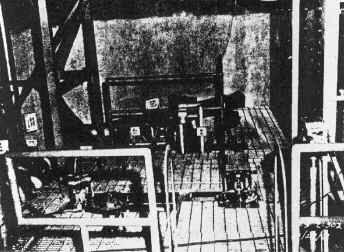

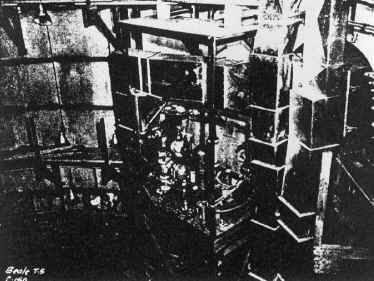

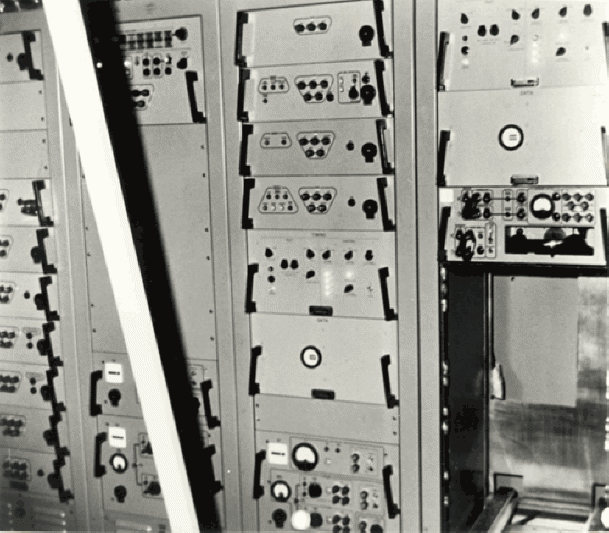

INSTRUMENTATION

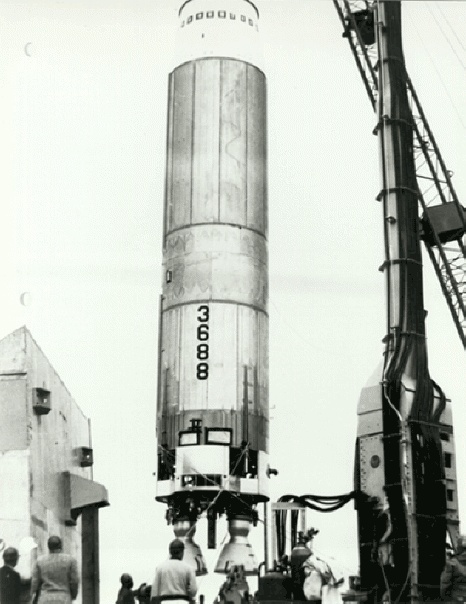

MISSILE PLACEMENT
IN THE NEAR FUTURE I HOPE TO ACQUIRE ORIGINAL COPIES

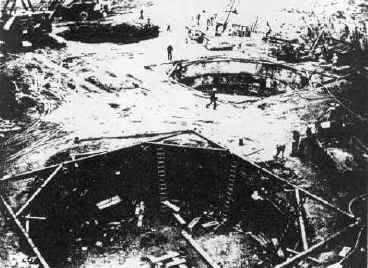

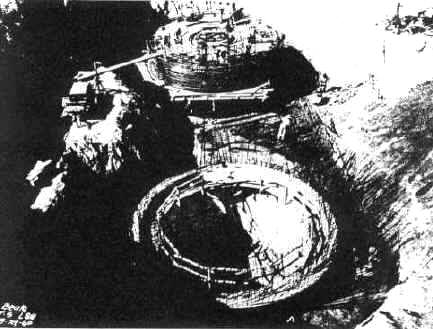

EXCAVATION OF LAUNCHER #1 LINCOLN

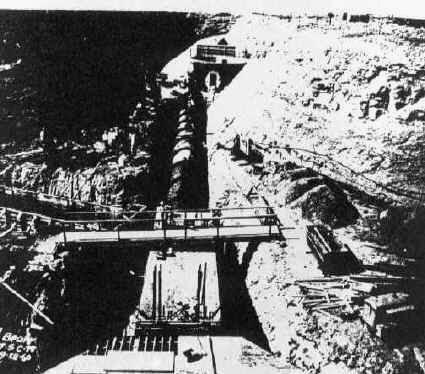

TUNNEL EXCAVATION

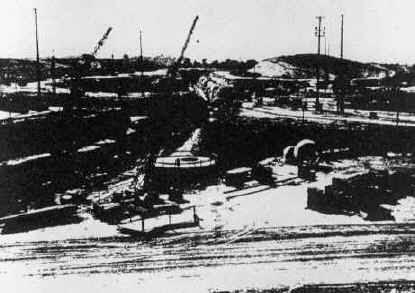

SITE 1C

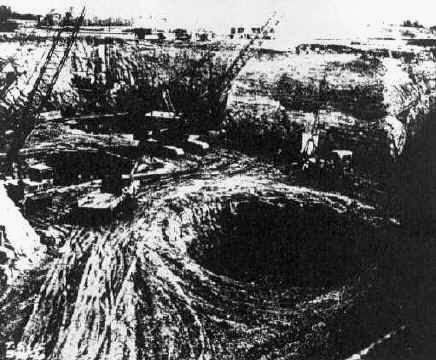

EXCAVATION OF LAUNCHER #1
SITE 1A

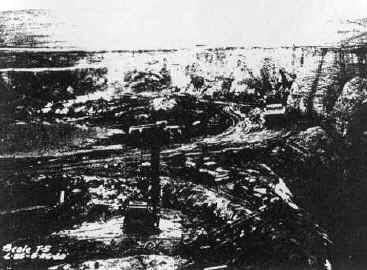

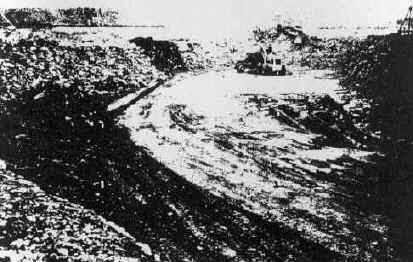

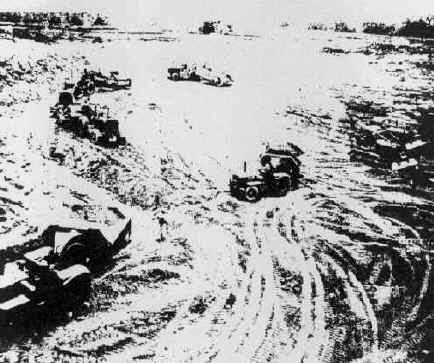

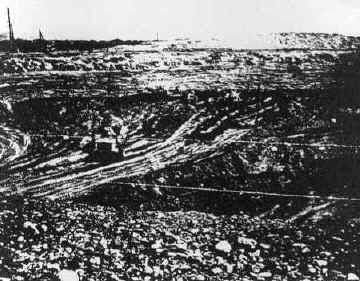

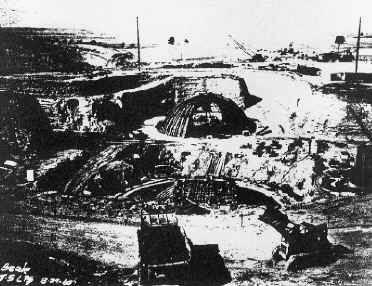

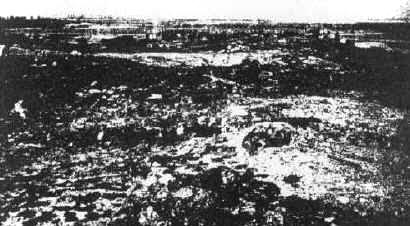

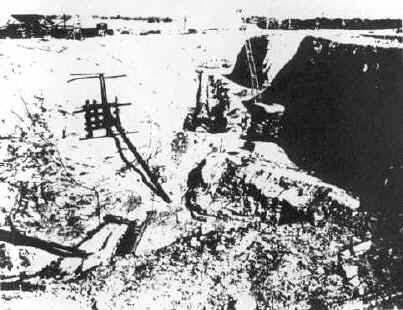

OPEN CUT EXCAVATION
SITE 1B TAKEN MARCH 1, 1960

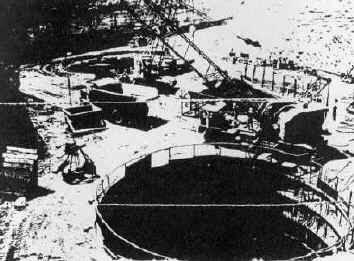

OPEN CUT EXCAVATION LAUNCHER #2
SITE 1C

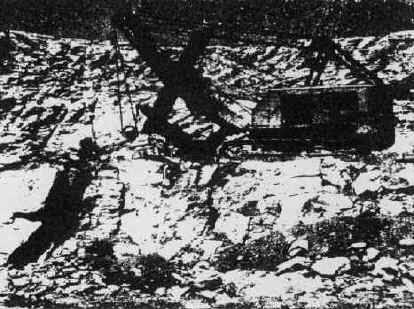

REMOVING ROCK FROM POWERHOUSE AREA
SITE 1A

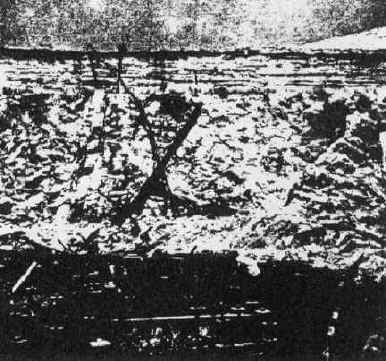

EARTH SLIDE NEAR LAUNCHER #2
SITE 1A

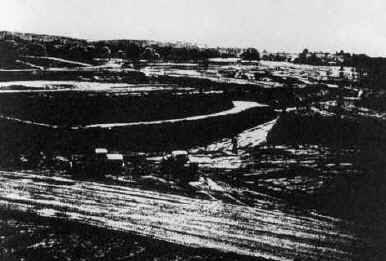

OPEN CUT EXCAVATION
LAUNCHER #2 TAKEN IN MARCH 1960
SITE 1A

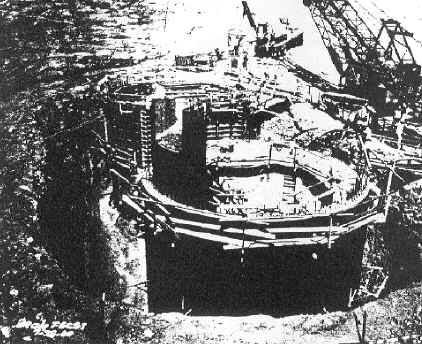

ANTENNA SILOS OPEN CUT EXCAVATION

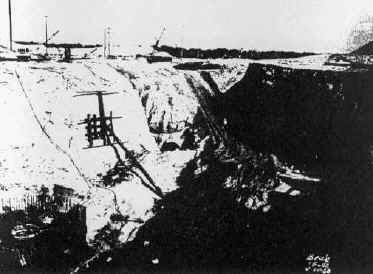

SHORING OF SLOPE
SITE 1A

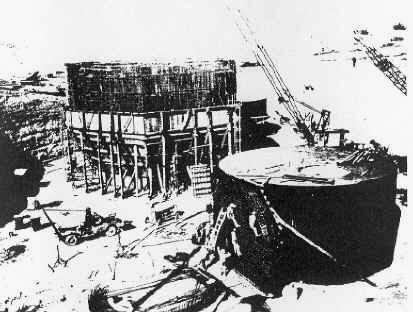

OPEN CUT EXCAVATION OF POWERHOUSE AND
CONTROL CENTER
SITE 1C
SHAFTING OPERATION EQUIPMENT
LAUNCHER #1
SITE 1A

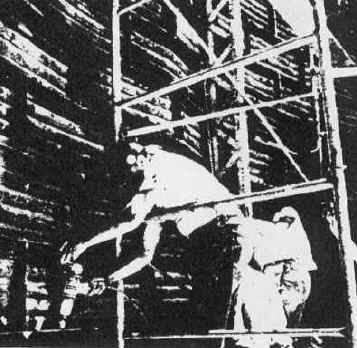

ROCK BOLT DRILLING
SITE 1A
SHAFTING OPERATIONS SHOWING STEEL
RING BEAMS AND APPLYING GUNITE
LAUNCHER #1
SITE 1A

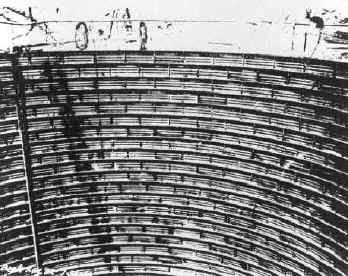

LINER PLATE
LAUNCHER #2
SITE 1A
ROCK BOLTS SEEN UNDER CONTROL CENTER
SITE 1A
ROCK BOLTS BEING PLACED UNDER
CONTROL CENTER
SITE 1A
ROCK BOLTS CLOSE UP UNDER
CONTROL CENTER
SITE 1A

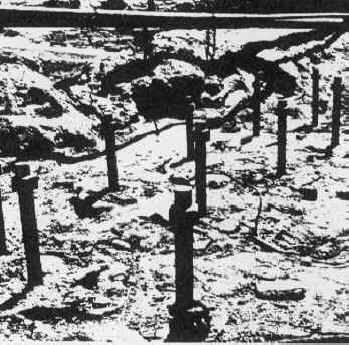

ROCK BOLTS
SITE 1A
BUCKLED LINER PLATE INSIDE LAUNCHER
SITE 1A

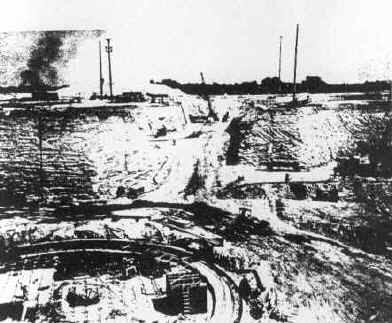

COMPACTING BACKFILL AROUND
ANTENNA SILOS
SITE 1A

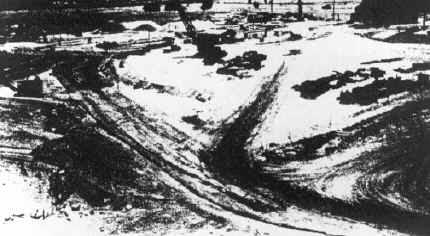

BACKFILLING
SITE C

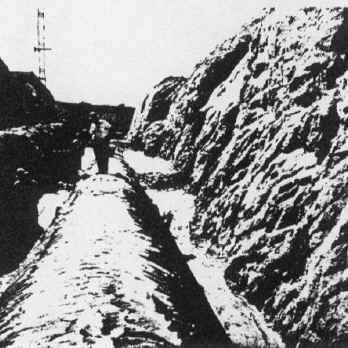

TUNNEL BACKFILL BETWEEN JUNCTION 10 AND
ANTENNA TERMINAL
SITE 1A
TUNNEL BACKFILLING
SITE 1A
CONCRETE BATCH PLANT
SITE 1A

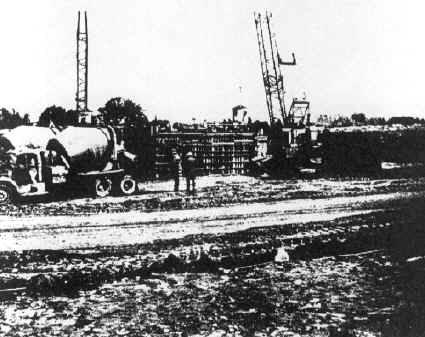

CONCRETE PLACEMENT MISSILE SILO NUMBER 2
SITE 1A

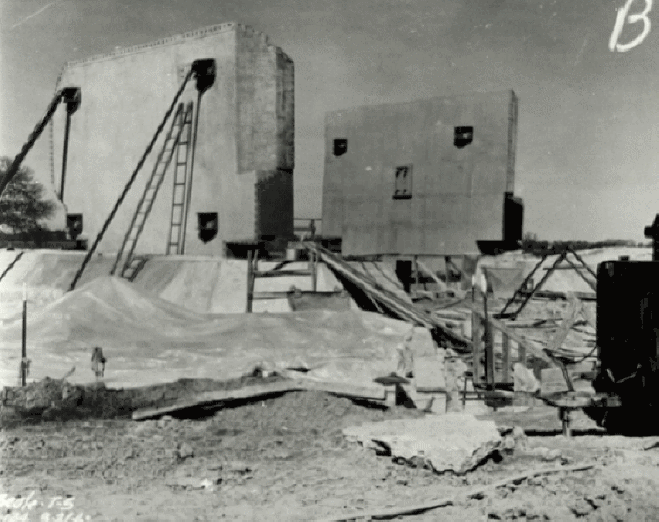

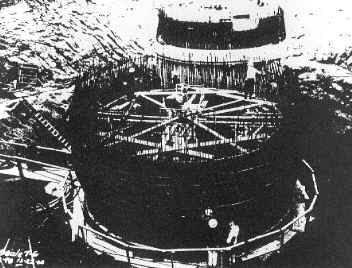

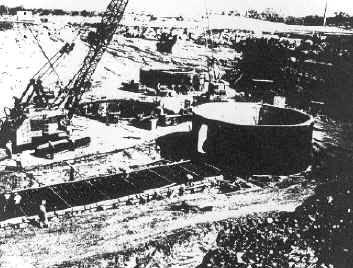

SETTING FORMS FOR ANTENNA SILOS
SITE 1C
FORMING PROPELLANT TERMINAL
SITE 1C
FORMING MISSILE SILO NUMBER 2
SITE 1A
FORMING EQUIPMENT TERMINAL WALL
SITE 1A
FORMING MISSILE SILO TOP SLAB
SITE 1A

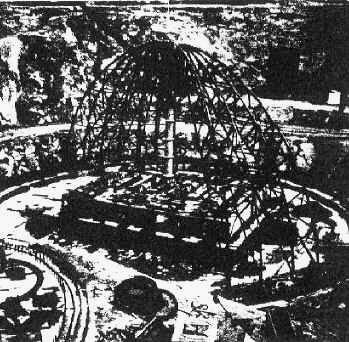

MOVABLE STEEL FORMS SURROUND THE CONTROL CENTER
SITE 1A

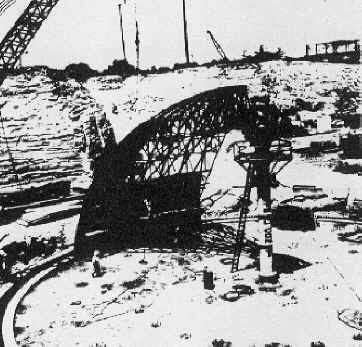

MOVABLE STEEL FORMS BEGIN TO TAKE SHAPE FOR CONTROL CENTER
SITE 1A
MOVABLE STEEL FORMS BEGIN THE POWERHOUSE
SITE 1A

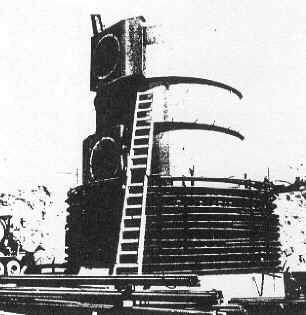

SLIP FORMS BEING PLACED IN MISSILE SILO #1
SITE 1A
SLIP FORMS BEING PLACED IN MISSILE SILO #1
SITE 1A

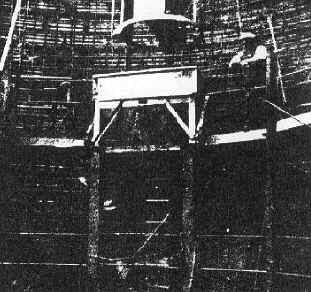

SLIP FORMS BEING PLACED IN MISSILE SILO #1 NOTICE THE BUGGIE, HOPPER AND HOIST BUCKET
SITE 1A

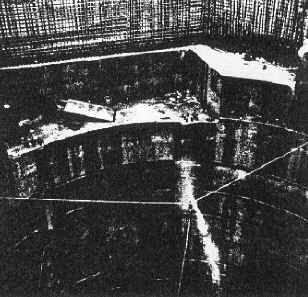

CONCRETE WALL FINISHING MISSILE SILO #1
SITE 1A

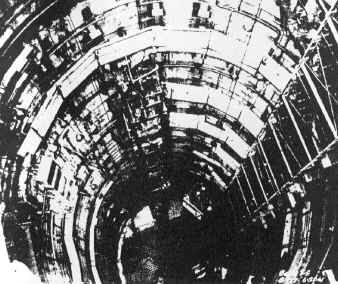

REINFORCEMENT STEEL MISSILE SILO #1 NOTICE LOX HEATING AND VENTILATING TUNNEL OPENINGS
SITE 1A
REINFORCEMENT STEEL FOR AIR EXHAUST
SITE 1A

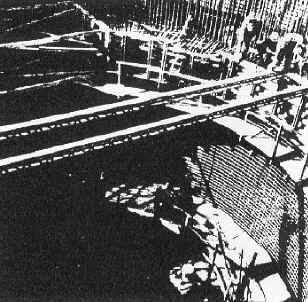

REINFORCEMENT STEEL ANTENNA SILOS
SITE 1A

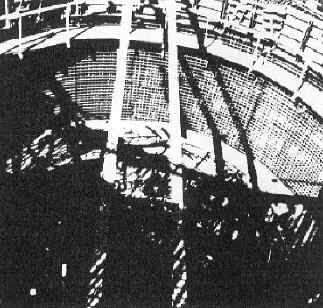

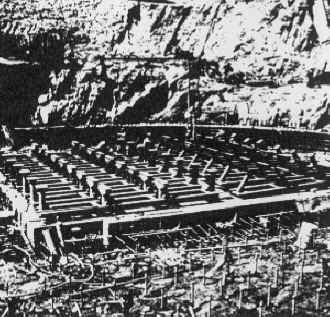

REINFORCEMENT STEEL FOR FOUNDATION OF LIQUID OXYGEN TANK
SITE 1C
LIQUID OXYGEN FUEL CRIB FOR MISSILE SILO #1
SITE 1B
SPRING BEAMS IN POWERHOUSE
SITE 1C
SPRING BEAMS FOR POWERHOUSE GENERATOR SLAB
SITE 1A
SPRING BEAMS FOR CONTROL CENTER
SITE 1C

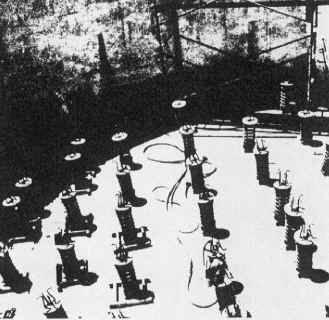

COIL SPRING MOUNTS FOR PROPELLANT TERMINAL
SITE 1A
SPRING BEAMS IN EQUIPMENT TERMINAL #1
SITE 1A

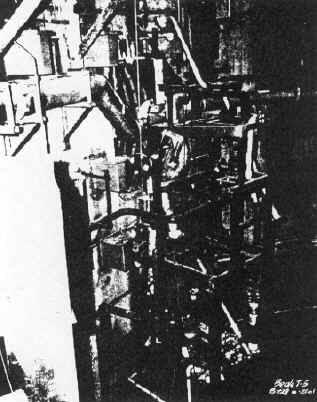

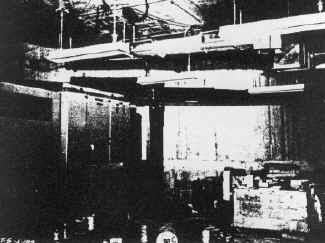

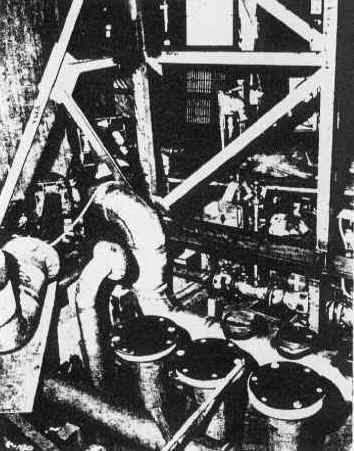

PROPELLANT TERMINAL LOOKING INTO INTERCONNECTING TUNNEL
NOTICE SEALED PIPE ENDS AND PURGE SET UP

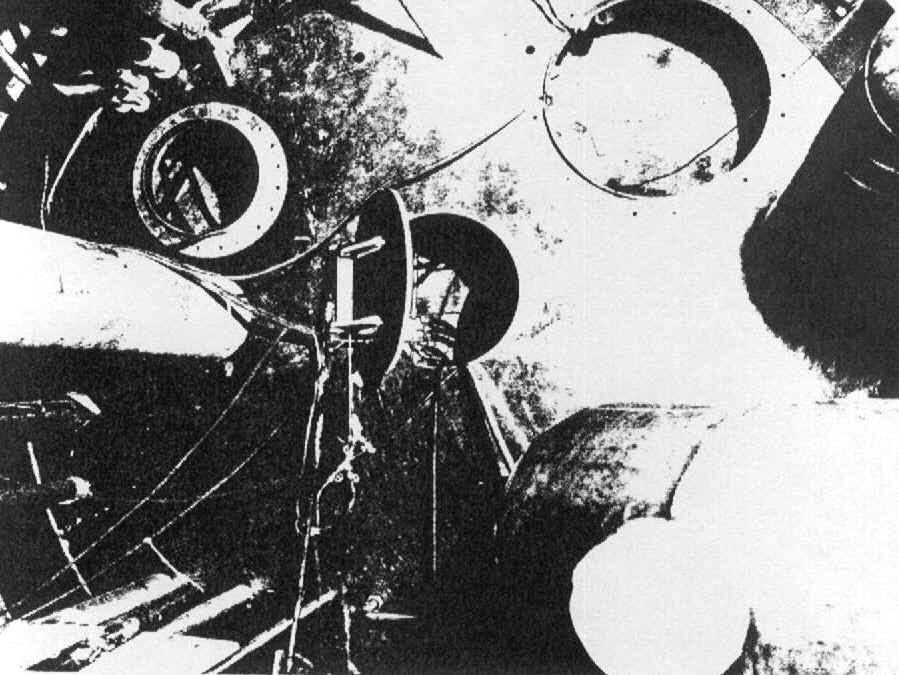

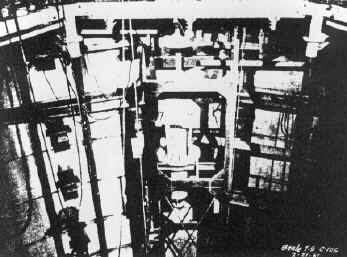

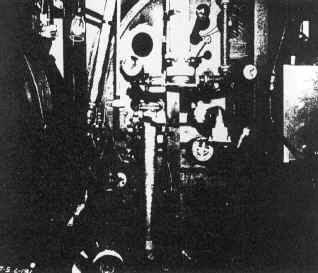

LOX CRIB MISSILE SILO AT INTERCONNECTING TUNNEL LEVEL. NOTICE INTERIM PIPING INSTALLATION
LOX CRIB IN THE MISSILE SILO. NOTICE THE CATCH POT INSTALLATION
FUEL CRIB IN MISSILE SILO

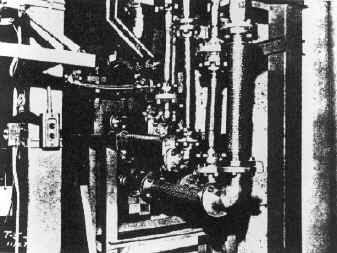

RP-1 FLOW CONTROLLER AND AIR RELEASE TANK INSTALLATION
TUNNEL JUNCTION 12

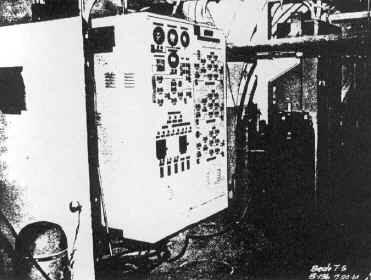

FUEL TRANSFER PANEL
TUNNEL JUNCTION 12

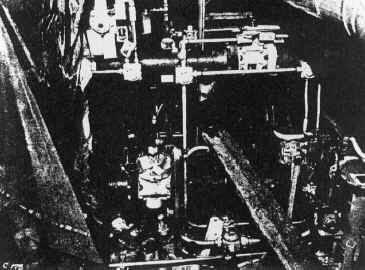

FUEL CONTROL VALVES AND PIPING INSTALLATION

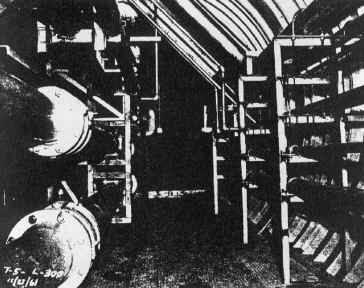

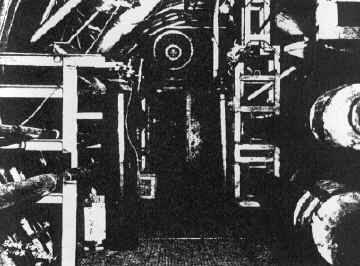

INTERCONNECTING TUNNEL NOTICE FIELD INSTALLATION SET-UP
COMPLETED INTERCONNECTING TUNNEL INSTALLATION
PROPELLANT TERMINAL

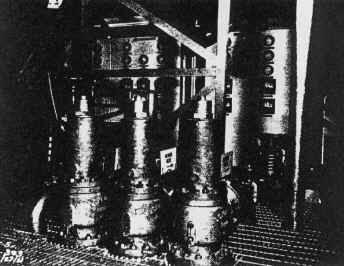

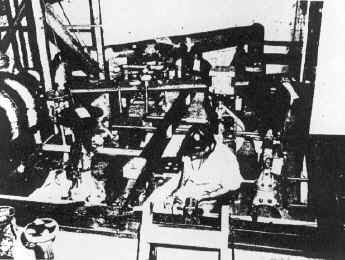

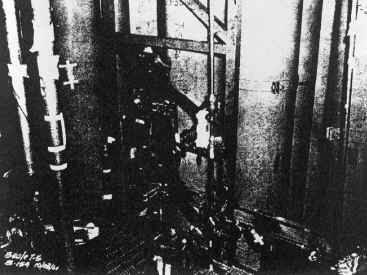

MAIN DECK PIPING INSTALLATION FOR LOX TANK SAFETY VALVE MANIFOLD
PROPELLANT TERMINAL

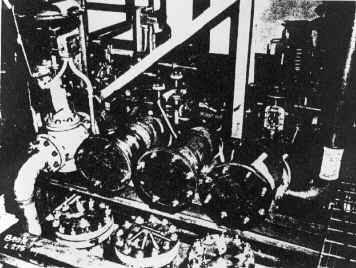

MAIN DECK VALVES AND CONNECTIONS TAPED FOR LEAK CHECK DURING TESTING
PROPELLANT TERMINAL MAIN DECK
COMPLETED INSTALLATION OF LOX TANK SAFETY VALVE MANIFOLD
NOTICE TRANSFER PANELS IN BACKGROUND
PROPELLANT TERMINAL MAIN DECK
INTERIM LOX CONTROL VALVE INSTALLATION
PROPELLANT TERMINAL MAIN DECK
COMPLETED VALVE INSTALLATION AND TRANSFER PANELS
PROPELLANT TERMINAL LOWER LEVEL
FLEX HOSE AND PIPE SUPPORT INSTALLATION
PROPELLANT TERMINAL
HIGH PRESSURE GASEOUS BOTTLE CLUSTER AND CONTROL MANIFOLD
RADIATION SHIELD BETWEEN VENT SHAFT AND INTERCONNECTING TUNNEL
PROPELLANT LOADING SYSTEM TESTING EQUIPMENT
HIGH PRESSURE RECHARGER AND LIQUID NITROGEN STORAGE TANK
