WALKER AFB
ROSWELL, NEW MEXICO
579th STRATEGIC MISSILE SQUADRON
SITE 9
EXTERIOR PHOTOS

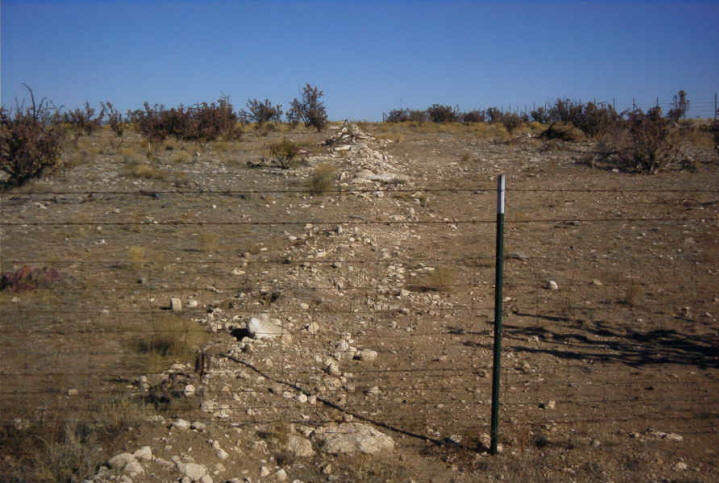

INTERSITE CABLE ROUTE
LOOKING EAST

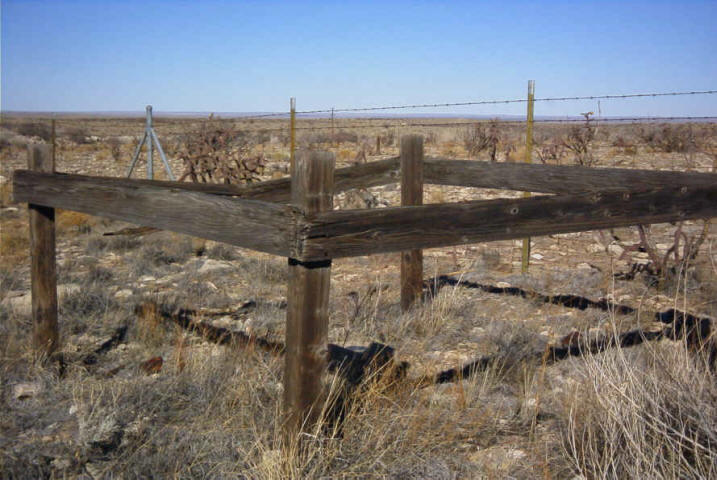

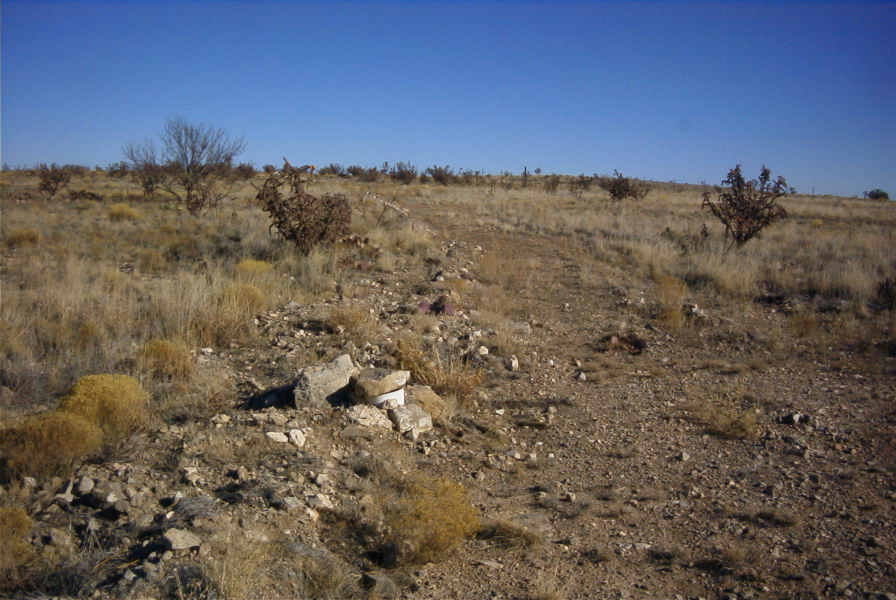

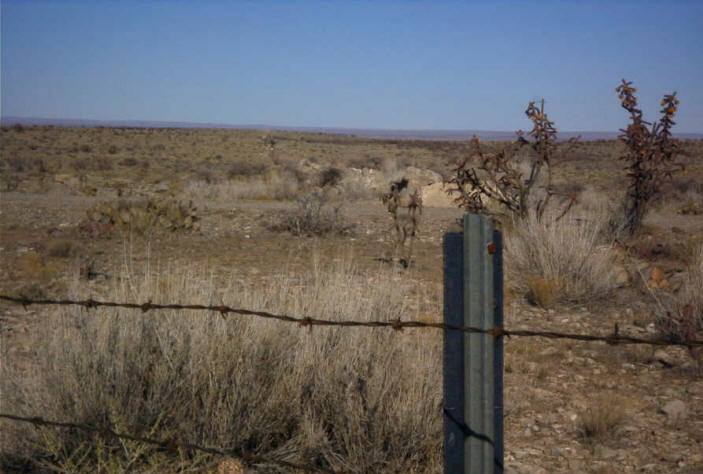

ORIGINAL SURVEY MARKER AND FENCE
NON ORIGINAL BURIED WATER LINE

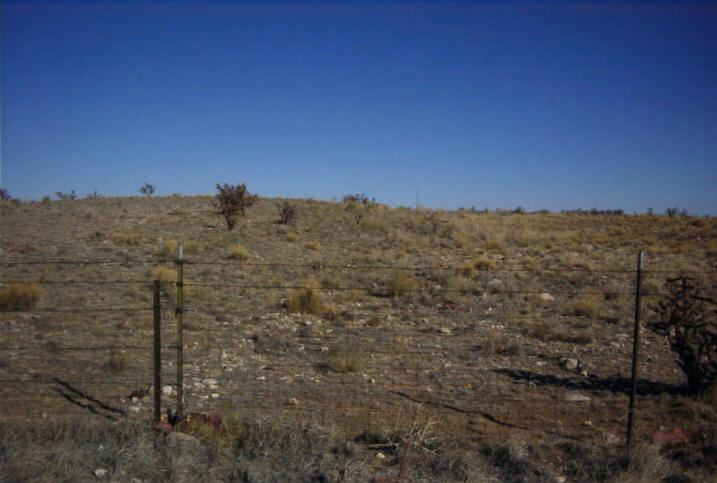

NOTE: THIS USED TO BE THE END OF THE RUNWAY AT THE TOP OF THE HILL
LOOKING EAST
LOOKING EAST
NON ORIGINAL WATER LINE RUNNING TO THE WEST
ORIGINAL FENCE INNER SECURITY FENCE LINE
COVERED NON ORIGINAL WATER LINE

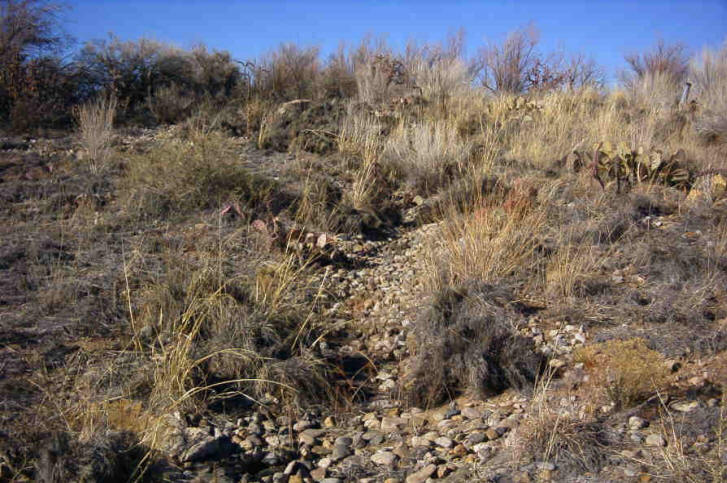

OUTFALL FROM SILO SUMP

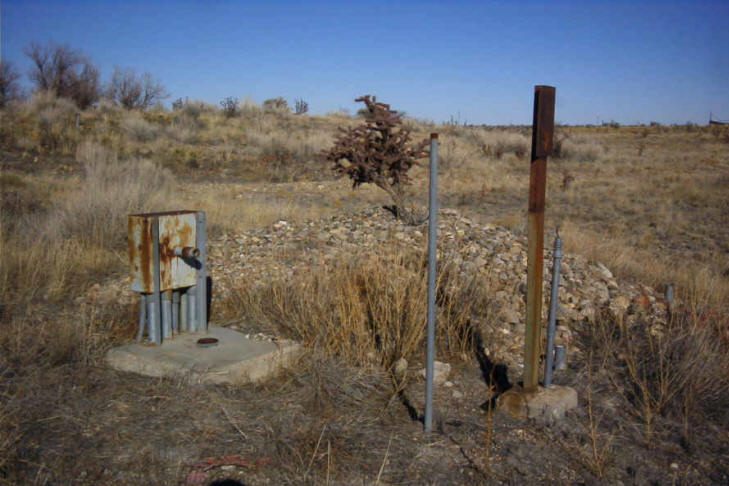

MAIN ENTRANCE GATE CONTROL BASE
NOTE: UPRIGHT WAS THE TELEPHONE BASE FOR COMMUNICATION WITH THE LAUNCH CONTROL CENTER
TELEPHONE COMMUNICATION BASE
NOTE: INNER SECURITY FENCE POST BASE

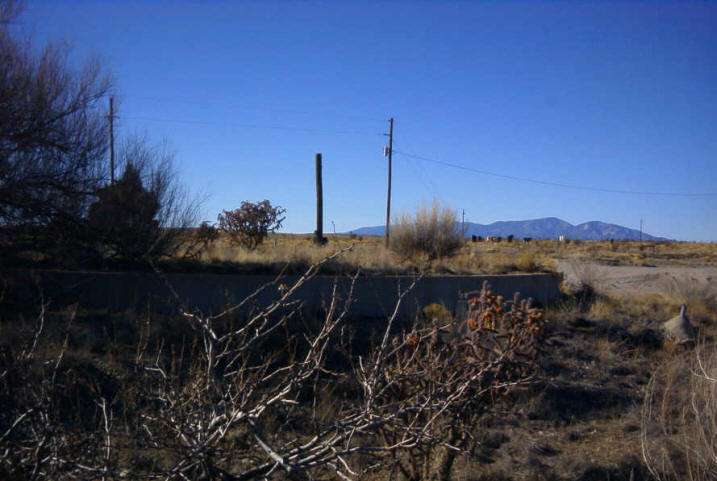

WATER TANK BASE

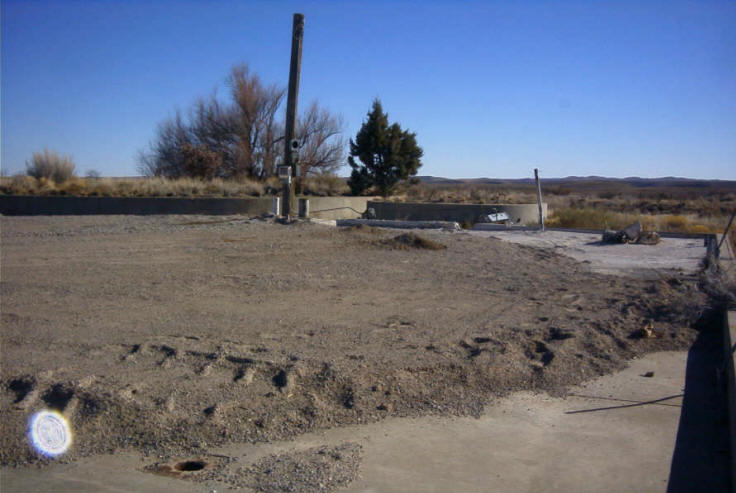

ADDITIONAL WATER TANK BASES AND WATER TREATMENT FACILITY FOUNDATION
WATER TANK BASES

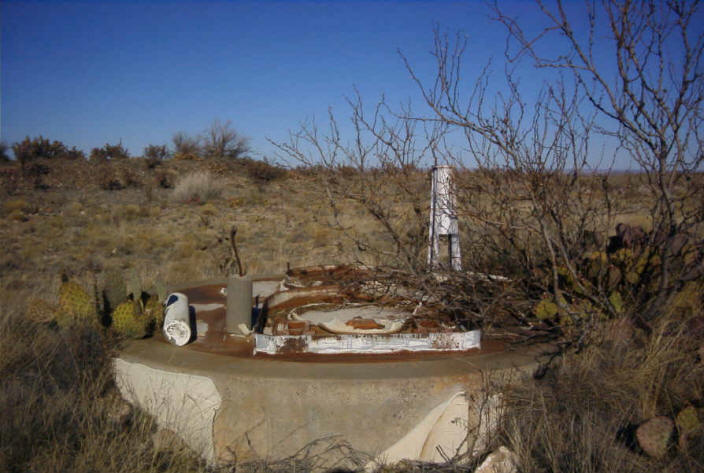

CAPPED WATER WELL IN WATER TREATMENT FACILITY

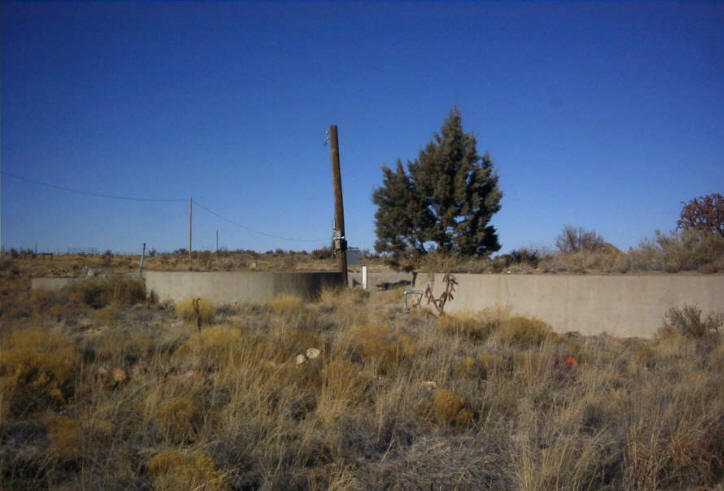

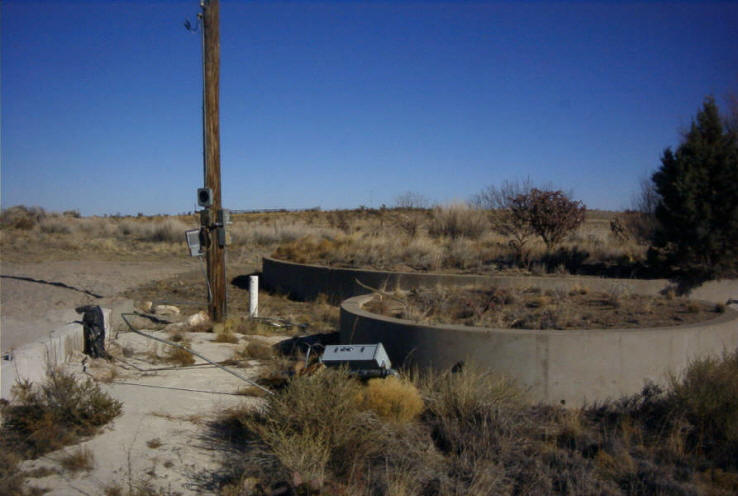

WATER TREATMENT FACILITY AND WATER STORAGE TANK BASES
CAPPED WATER WELL

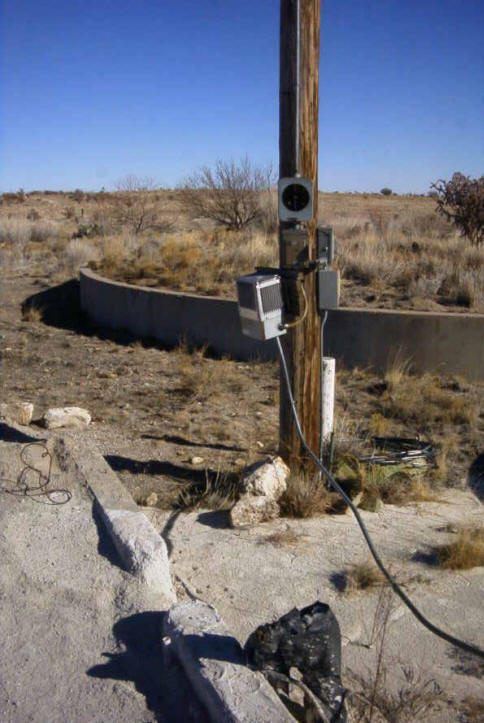

ELECTRICAL METER BASE
NON ORIGINAL TRANSFORMER
SEPTIC DRAIN FIELD

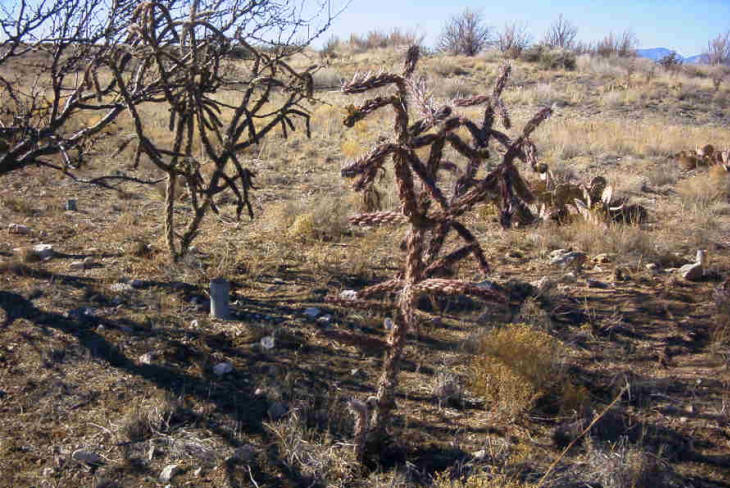

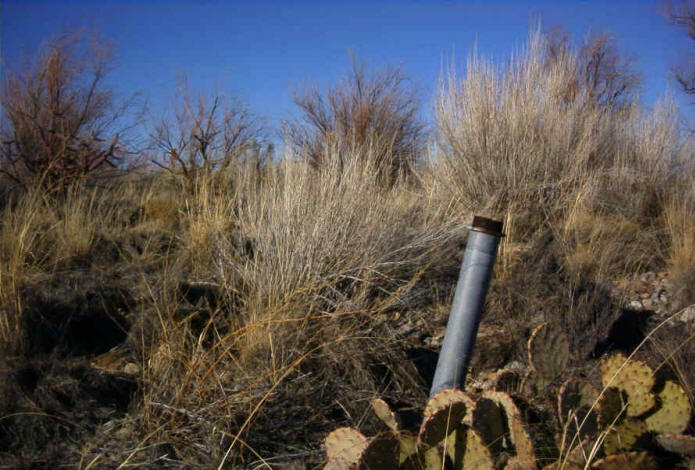

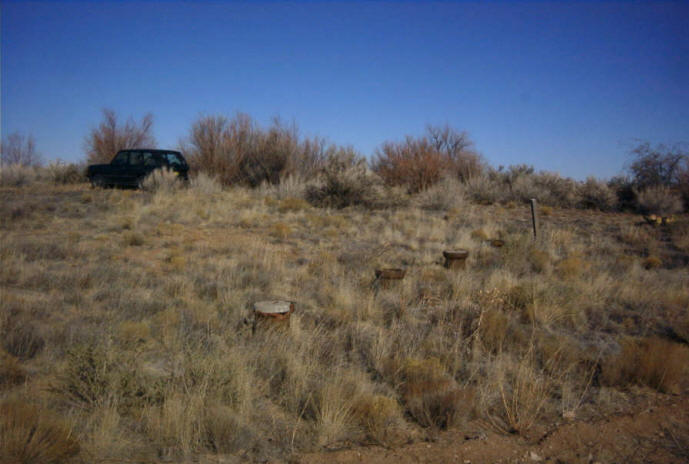

AIR VENTS FOR DRAIN FIELD
DISTRIBUTION BOX
SEPTIC TANK AND DISTRIBUTION BOX
SOUTHERN BLAST DETECTION BASE
BLAST DETECTION BASE CONDUITS

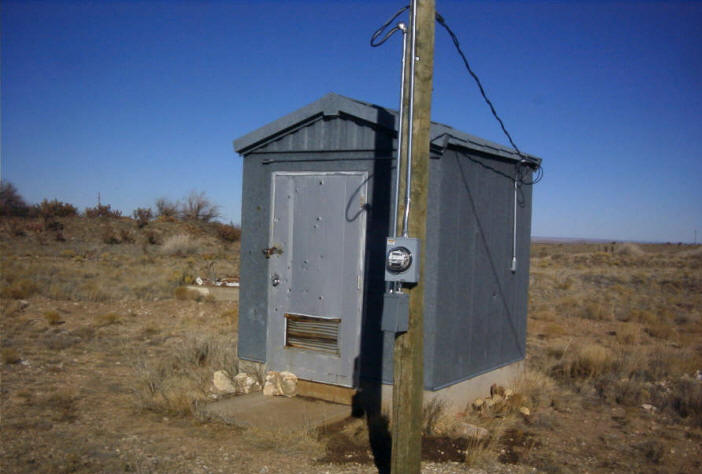

WELL HOUSE

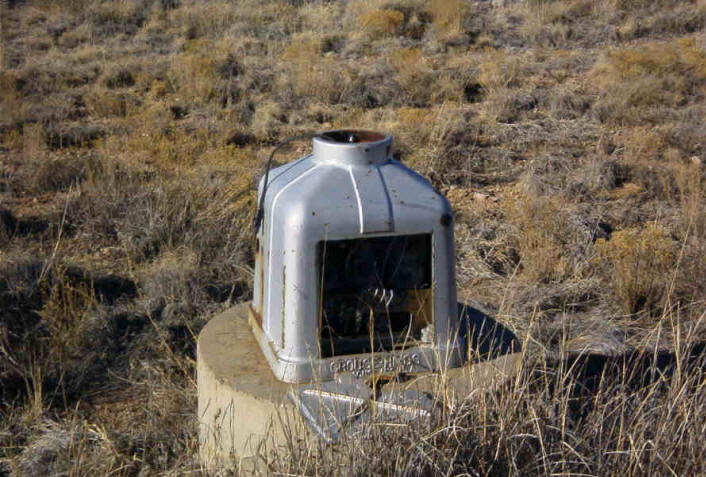

SOFT ANTENNA BASE
NOTE: ENTRYWAY IN BACKGROUND
HIGH FREQUENCY ANTENNA SILO
HIGH FREQUENCY ANTENNA BASE
NORTHERN BLAST DETECTION BASE
BLAST DETECTION BASE

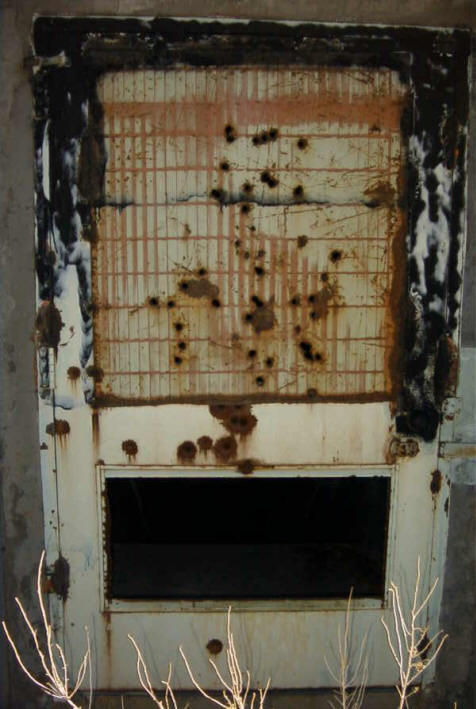

ORIGINAL ENTRYWAY DOOR

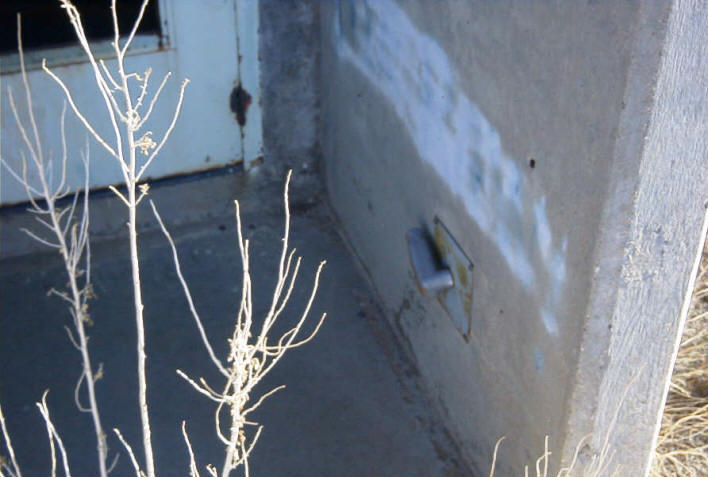

ENTRYWAY PHONE LINE

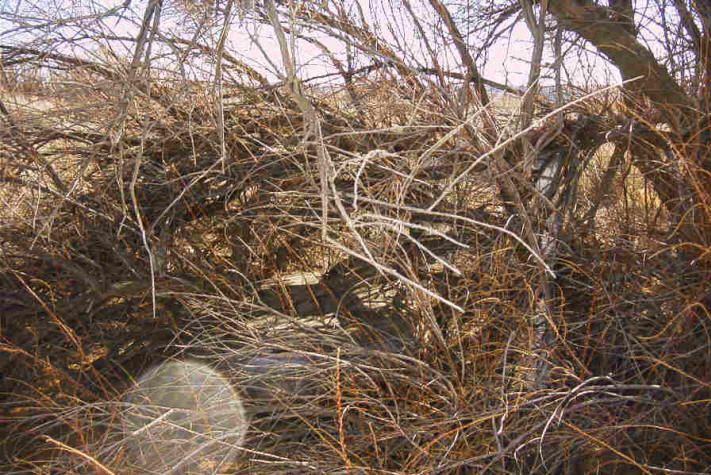

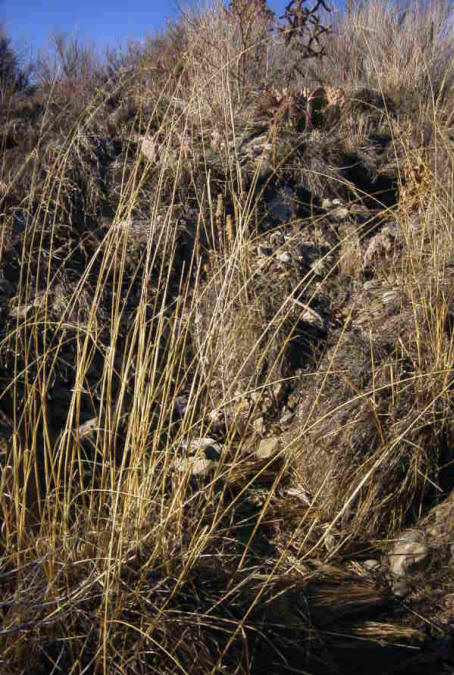

OVERGROWN ESCAPE HATCH
ESCAPE HATCH
LIGHT & ALARM BASES FOR LAUNCH CONTROL CENTER
NOTE: VIDEO CAMERA PAD EDGE ON THE LOWER LEFT

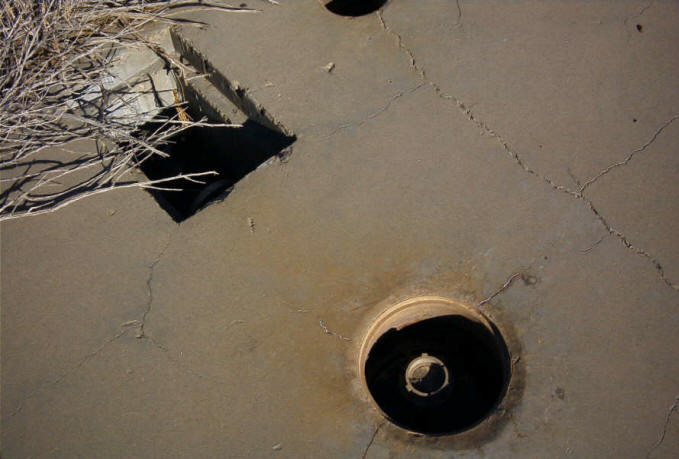

FUEL CATCHMENT & DIESEL VENT ON SILO

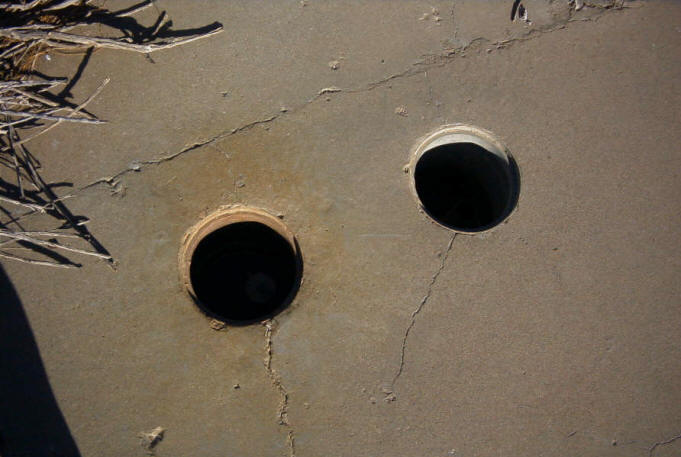

VALVE & FILL OPENINGS
SILO EXTERIOR LIGHT POLE BASE
CABLE MARKER FOR BURIED UNDERGROUND LINES
COMMERCIAL UNDERGROUND POWER FEED
NOTE: THIS IS LOCATED ON THE SOUTHERN END OF THE SILO CAP
SILO SUMP OUTFALL
SILO SUMP OUTFALL
MAPCHE CHECKOUT STUB UPS
SEWER SUMP MANHOLE COVER
