WALKER AFB
ROSWELL, NEW MEXICO
579th STRATEGIC MISSILE SQUADRON
SITE 10
INTERIOR PHOTOS

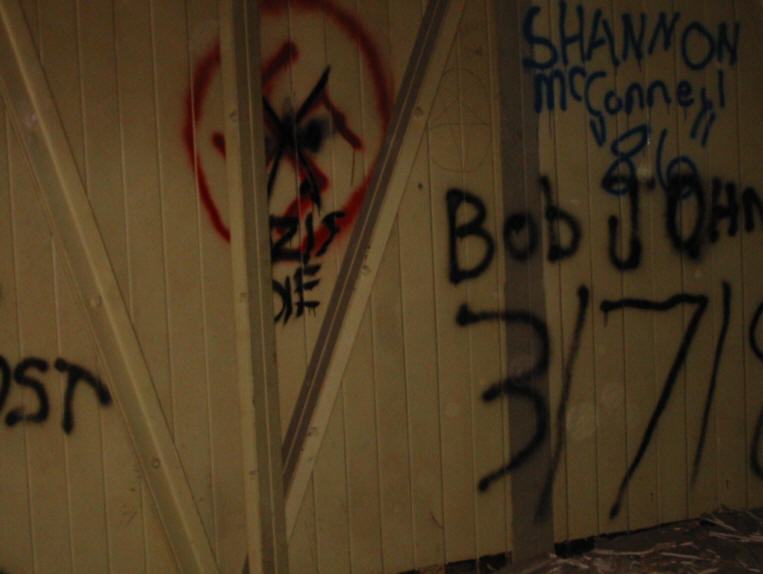

ORIGINAL EXTERIOR METAL WALLS

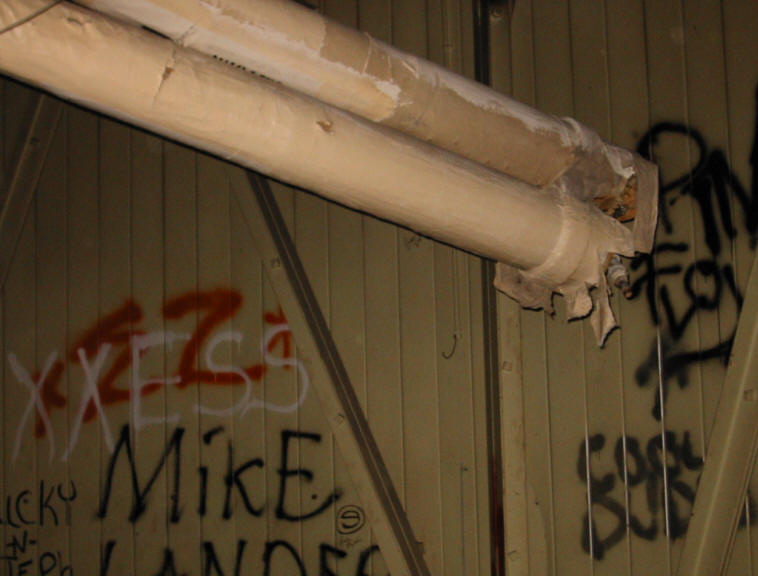

HVAC FEED LINES TO AIR HANDLER IN COMMUNICATION AREA

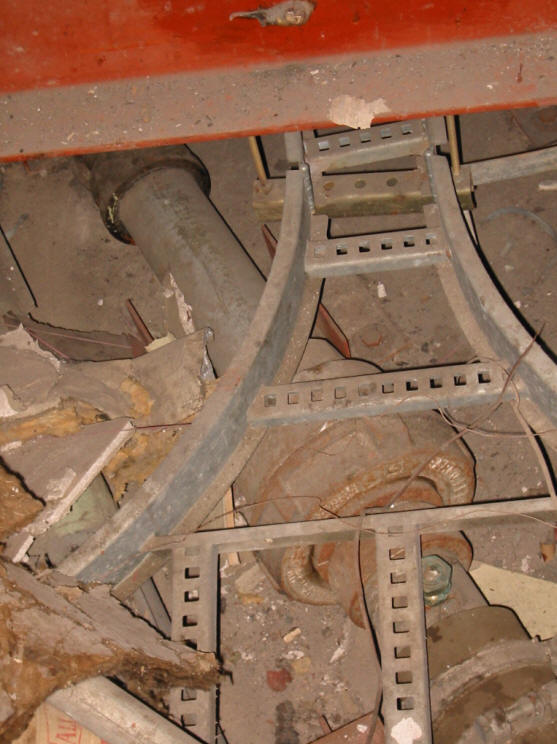

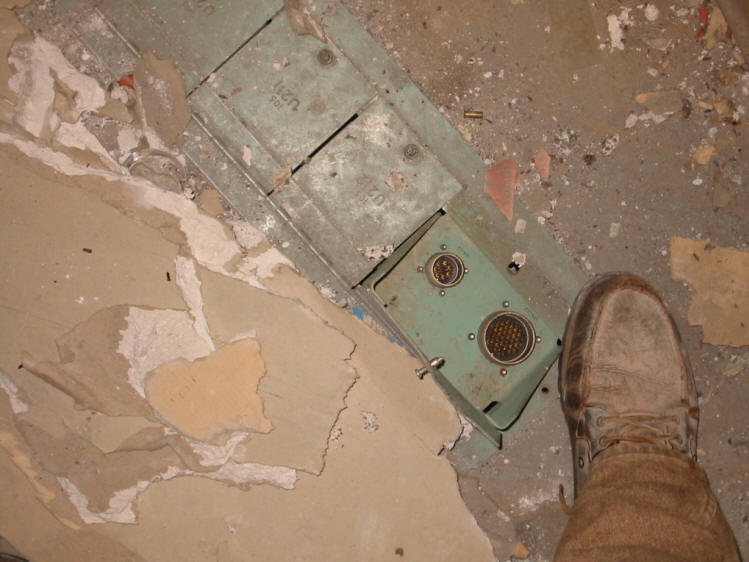

CABLE TRAYS FOR UNDER FLOOR
EQUIPMENT HOOK UPS

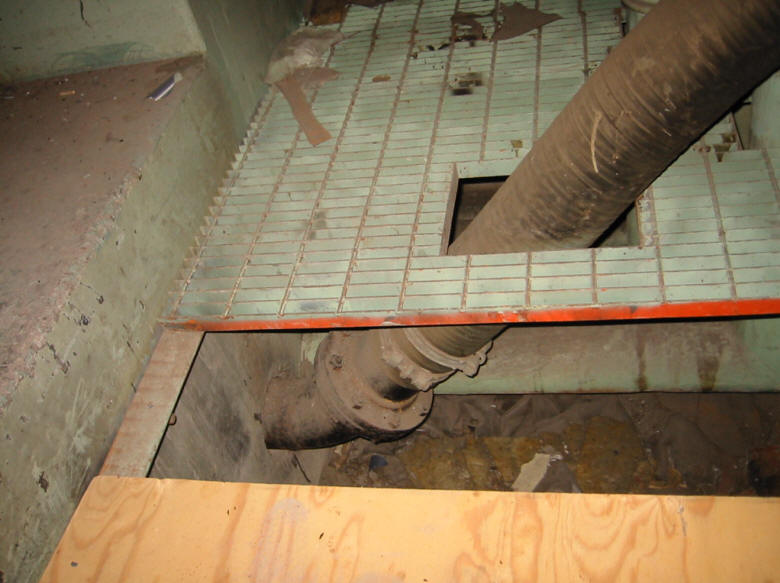

FLEXIBLE DRAIN LINE CONNECTION TO STAIRWELL SEWER SUMP
FLEXIBLE DRAIN LINE
SEWER CONNECTION

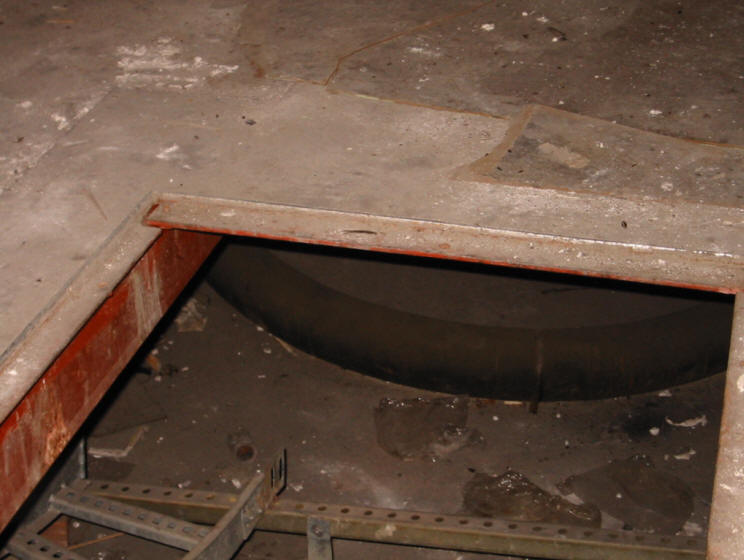

OPENING FOR PNEUMATIC SHOCK SUSPENSION SYSTEM
UTILITY TUNNEL

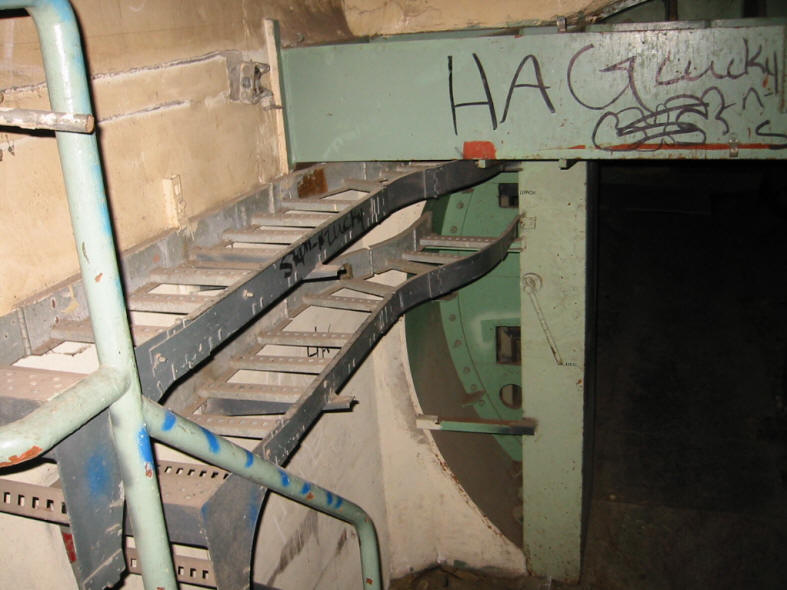

CABLE TRAYS TO UTILITY TUNNEL
SEWER SUMP
SEWER SUMP

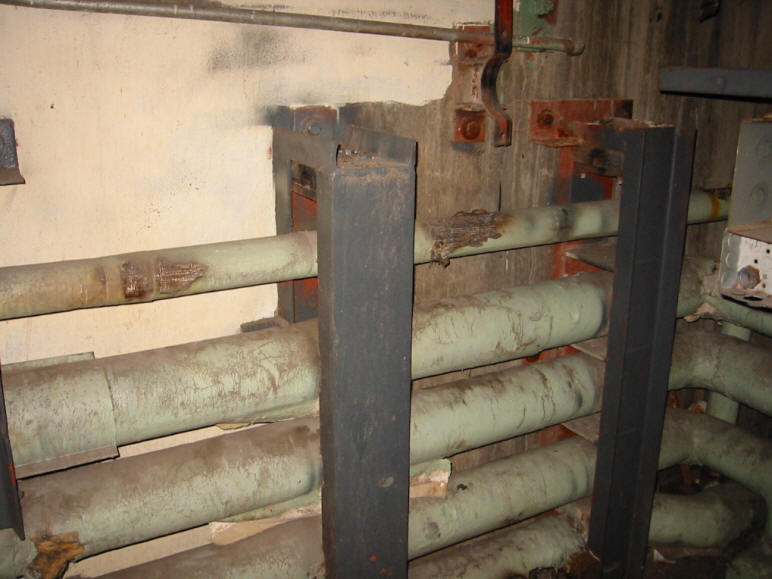

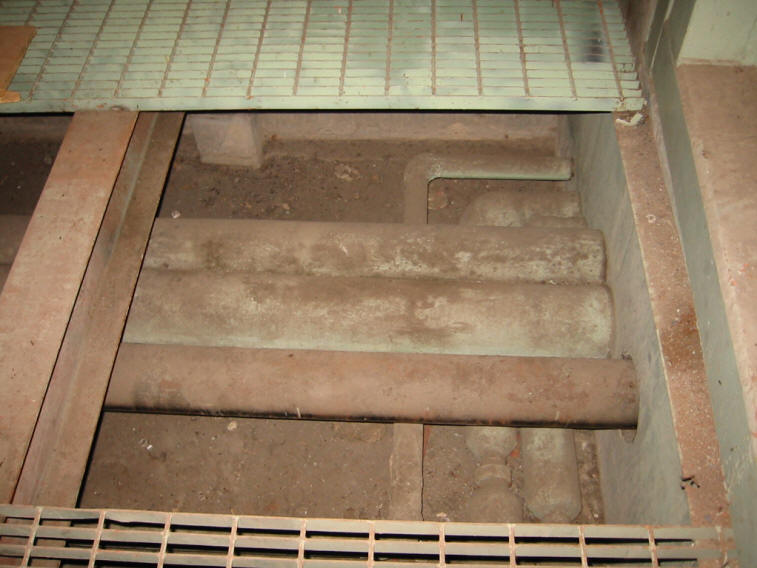

WATER LINES FOR HVAC
LOOKING FROM UTILITY TUNNEL TO LAUNCH CONTROL CENTER
WATER LINES
WATER LINES
STAIRWELL SEWER SUMP FLOOR DRAIN

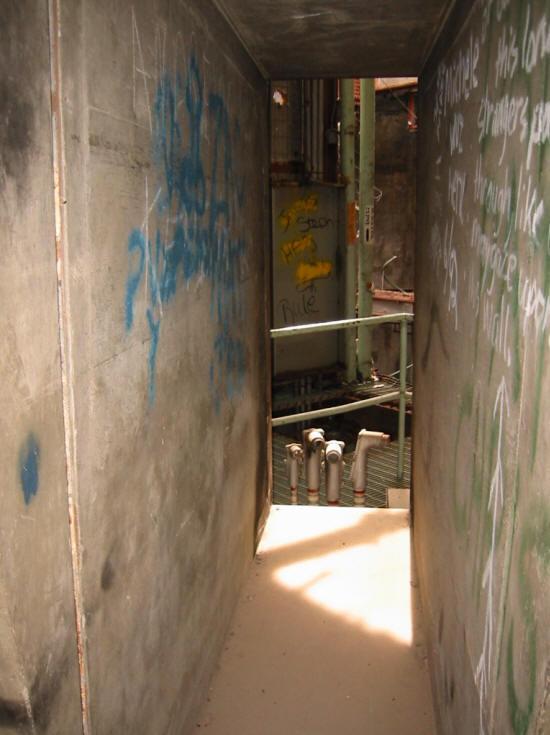

UTILITY TUNNEL ENTRANCE

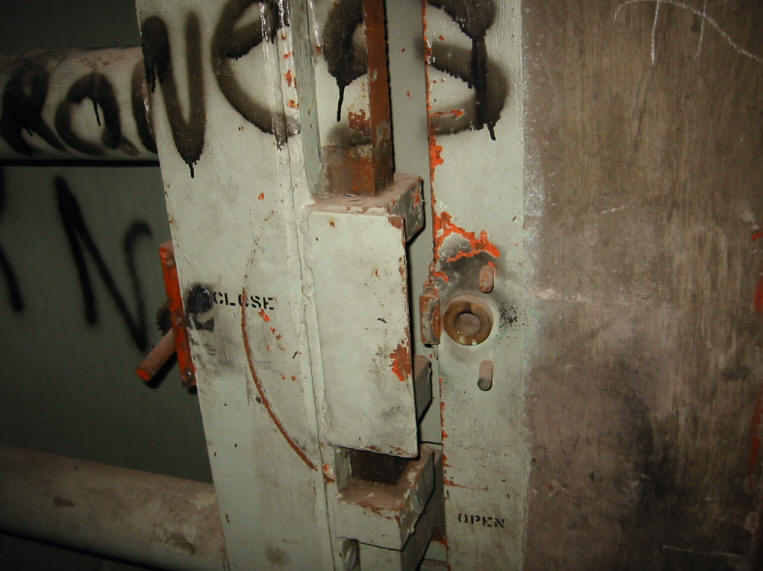

FIRE & DEBRIS DOOR

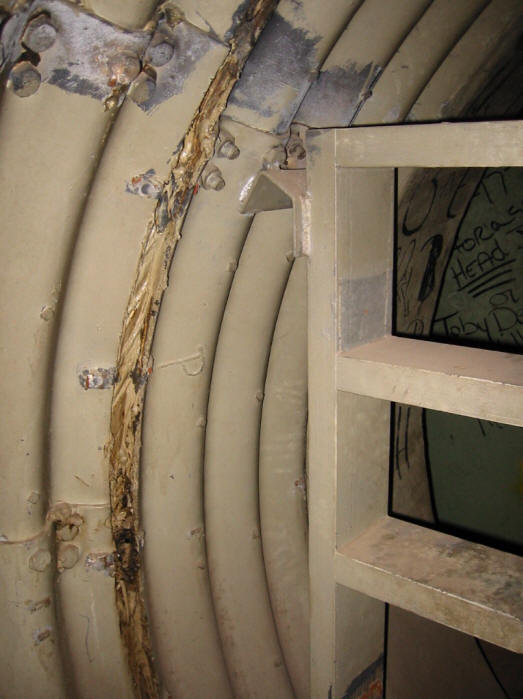

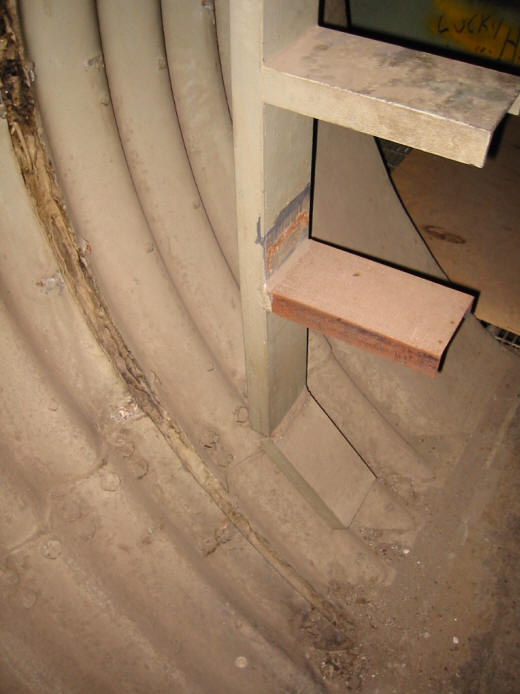

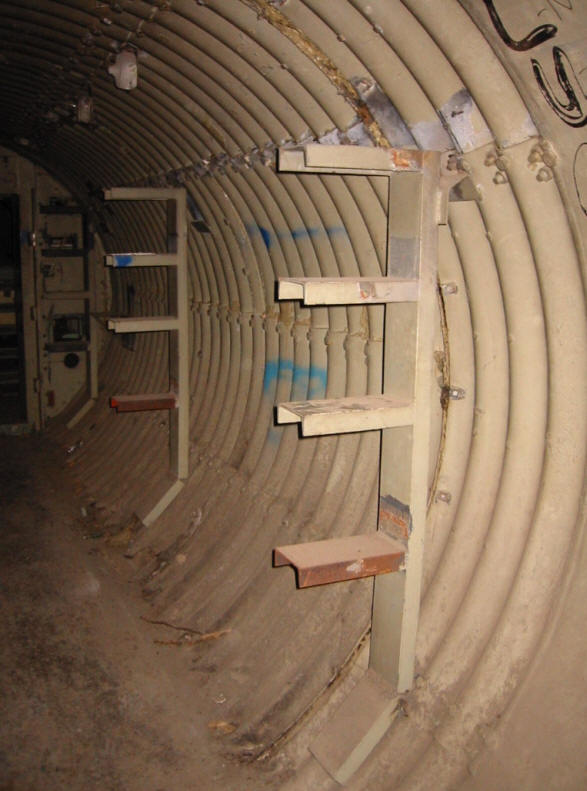

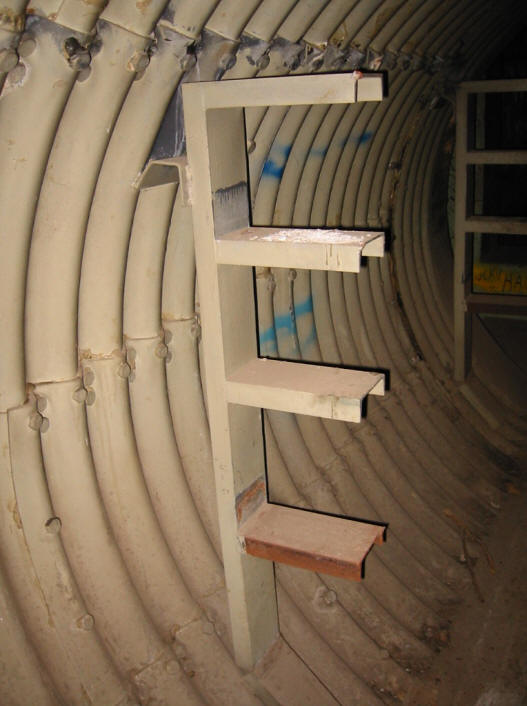

UTILITY TUNNEL CABLE TRAY BRACKETS

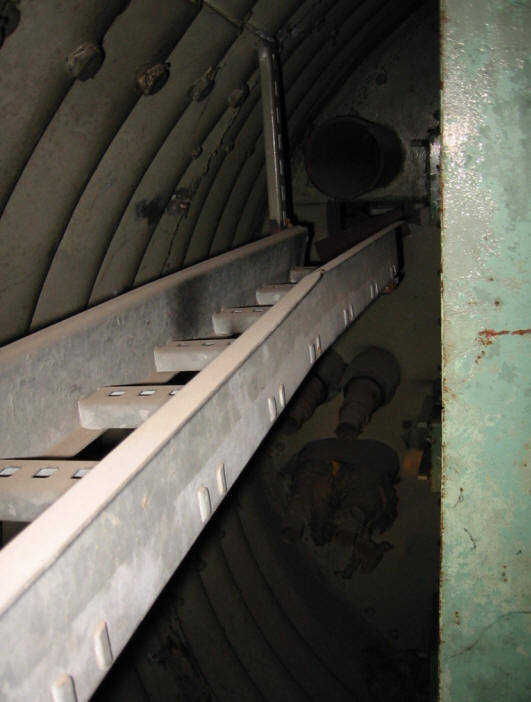

CABLE TRAYS
NOTE: FLEXIBLE WATER LINES HAVE BEEN REMOVED
FLEXIBLE WATER LINES REMOVED
MAIN 6" WATER FEED LINE

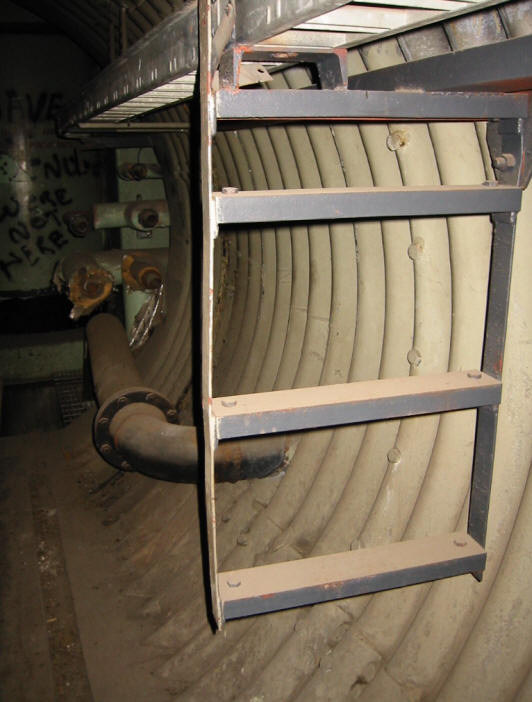

CABLE TRAY BRACKETS

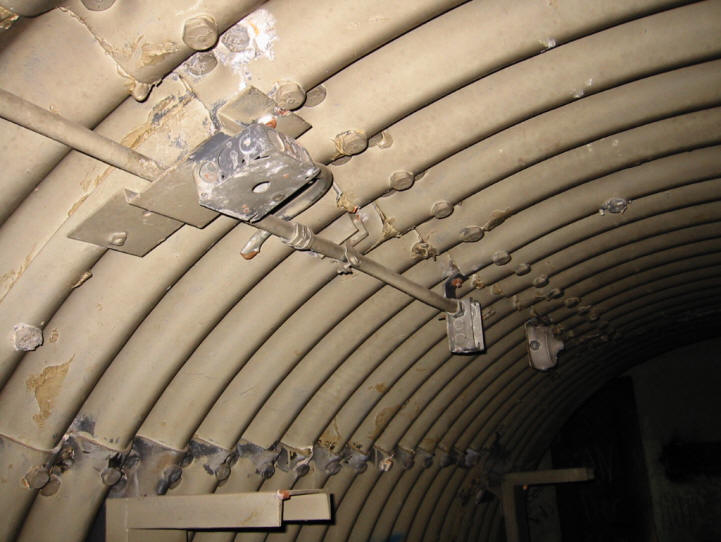

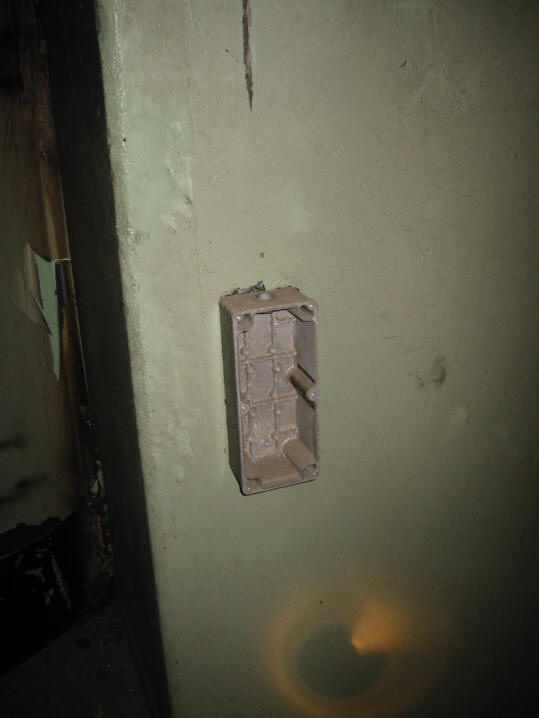

UTILITY TUNNEL ELECTRICAL LINES FOR LIGHTS AND WARNING HORN
6" WATER LINE

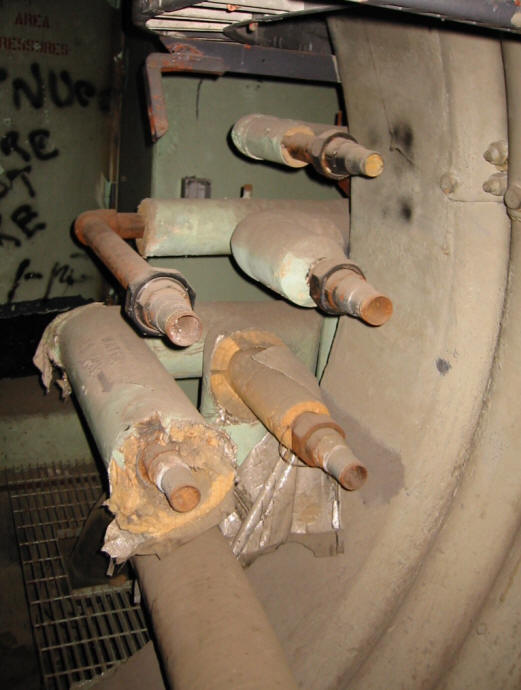

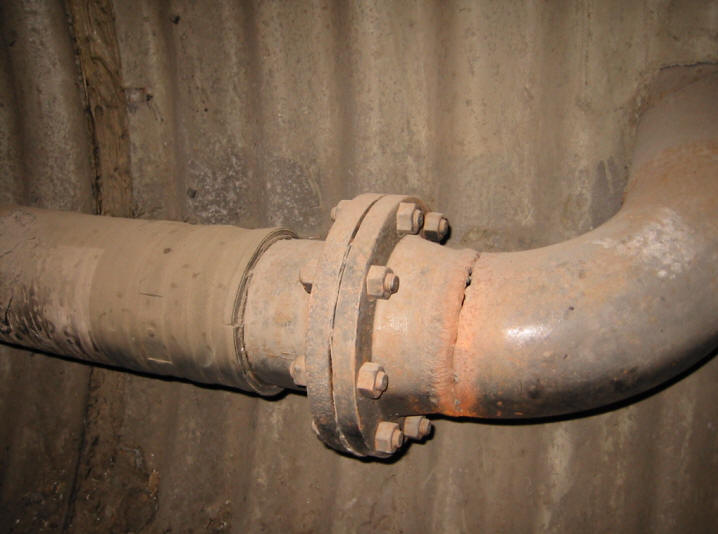

FLEXIBLE WATER LINE CONNECTORS

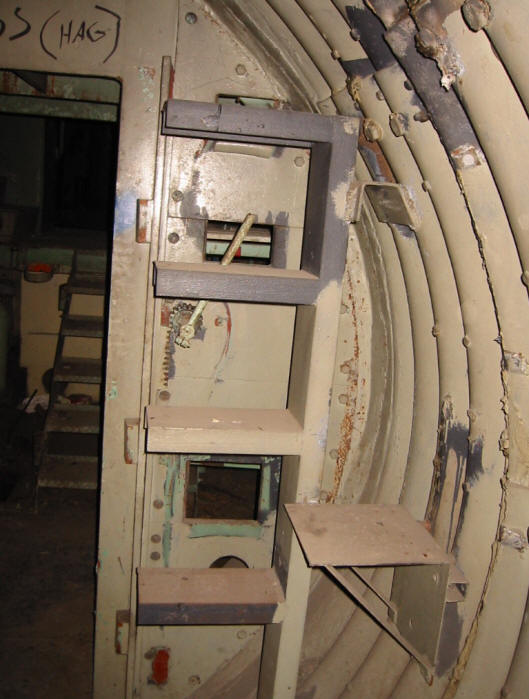

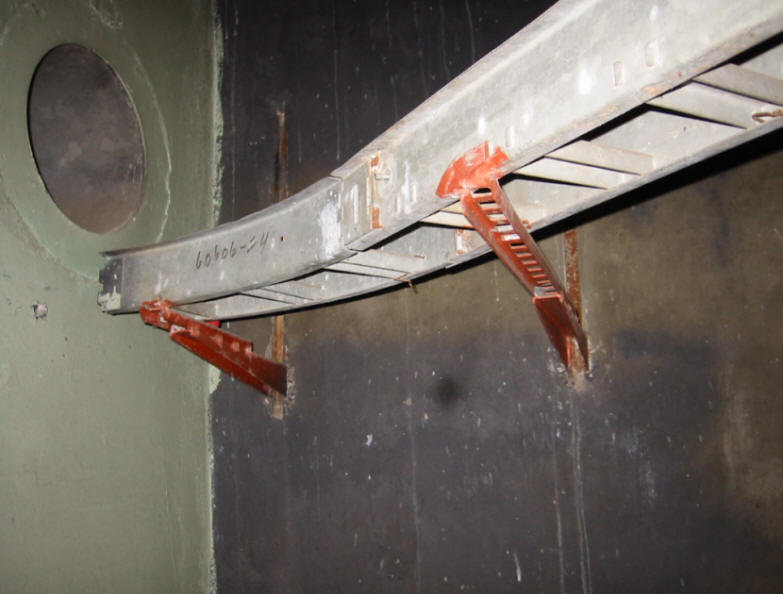

CABLE TRAY BRACKETS
CABLE TRAY BRACKETS
6" WATER LINE TO SILO

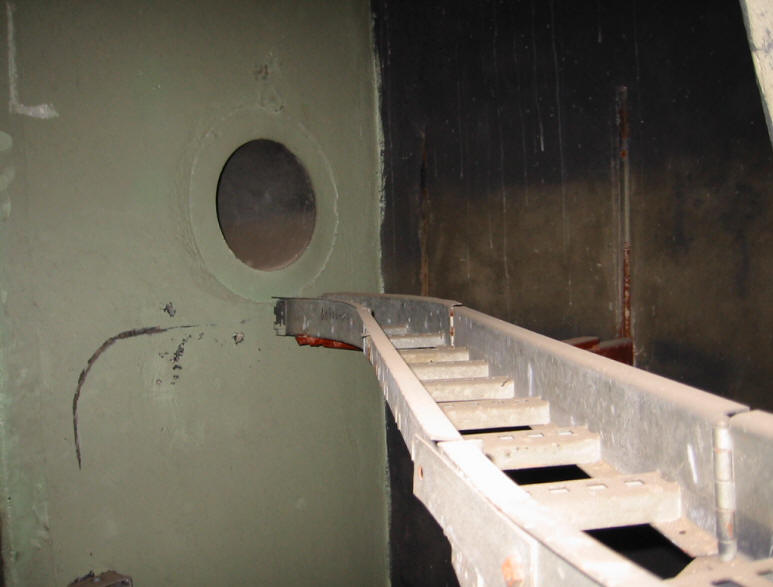

CABLE TRAY TO SILO BLAST VESTIBULE
NOT SURE???

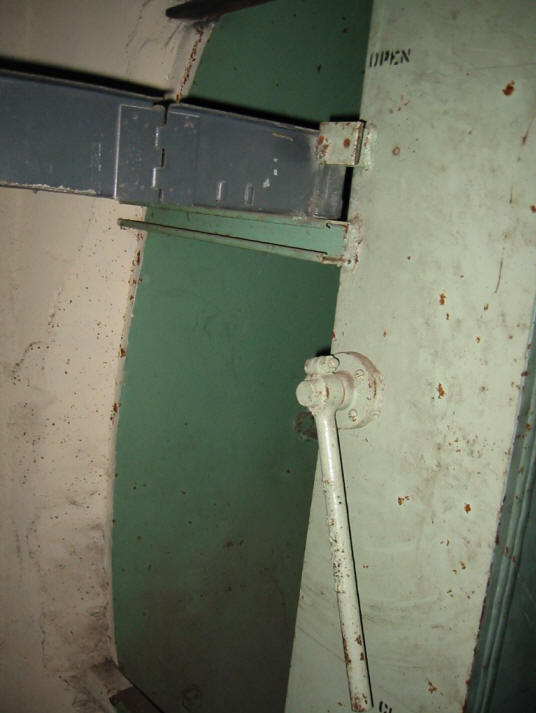

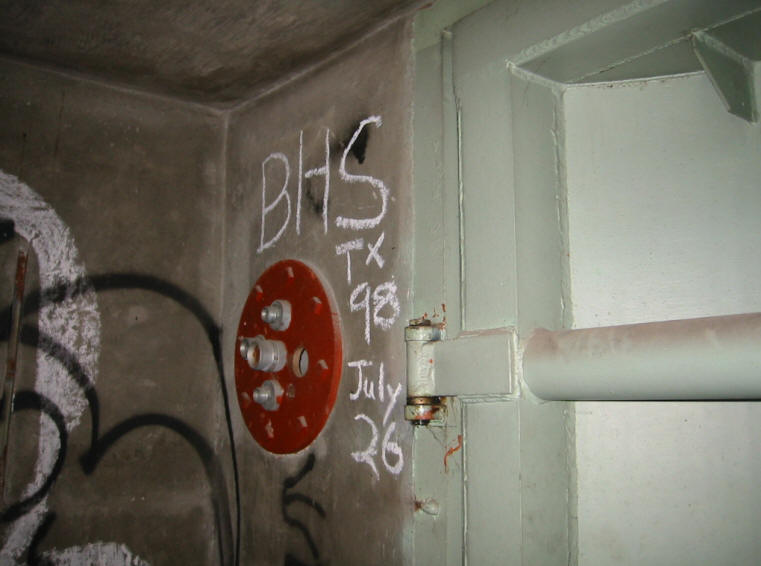

NOTE: BLAST DOOR ON LEFT
CABLE TRAY
WELDED BLAST DOOR
WELDED BLAST DOOR
CABLE TRAY BRACKETS
WATER LINES

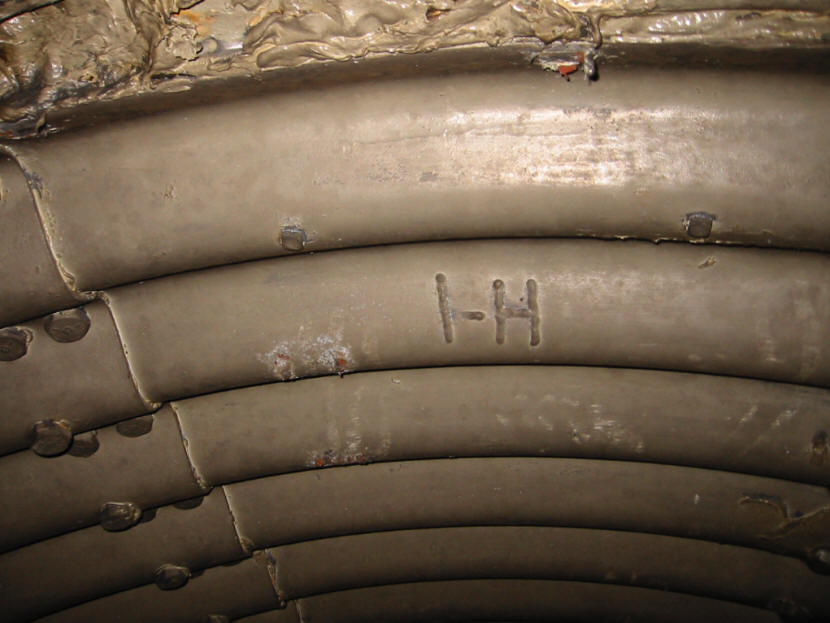

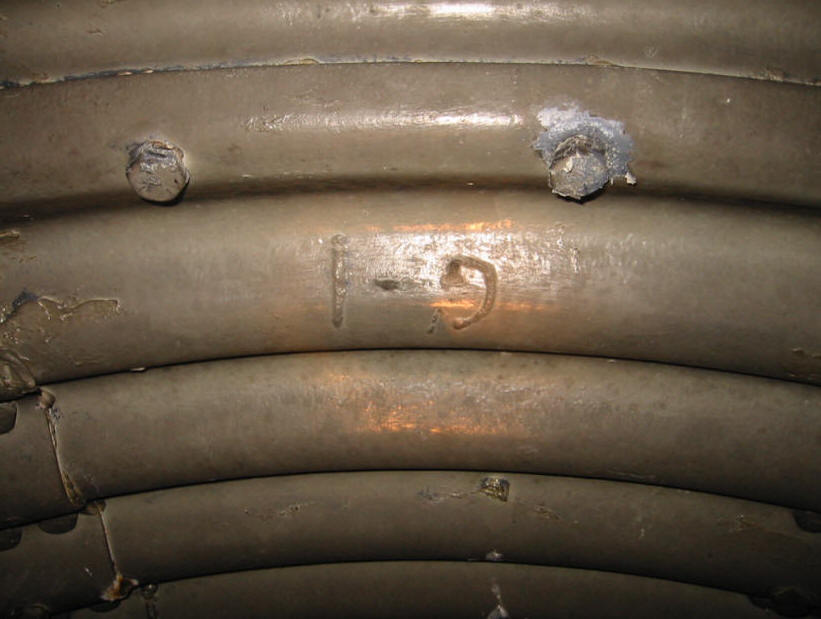

UTILITY TUNNEL CEILING
UTILITY TUNNEL CEILING

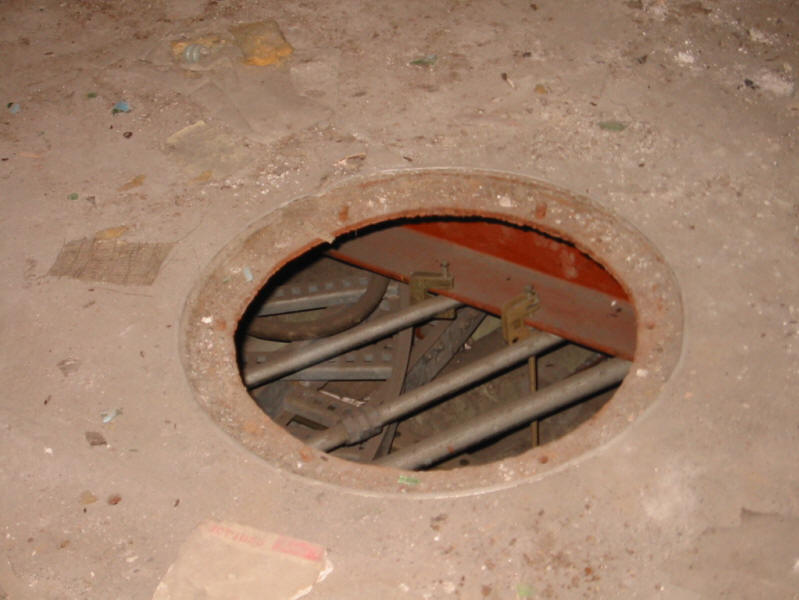

CABLE PROTECTORS
BLAST DOOR THAT IS WELDED SHUT

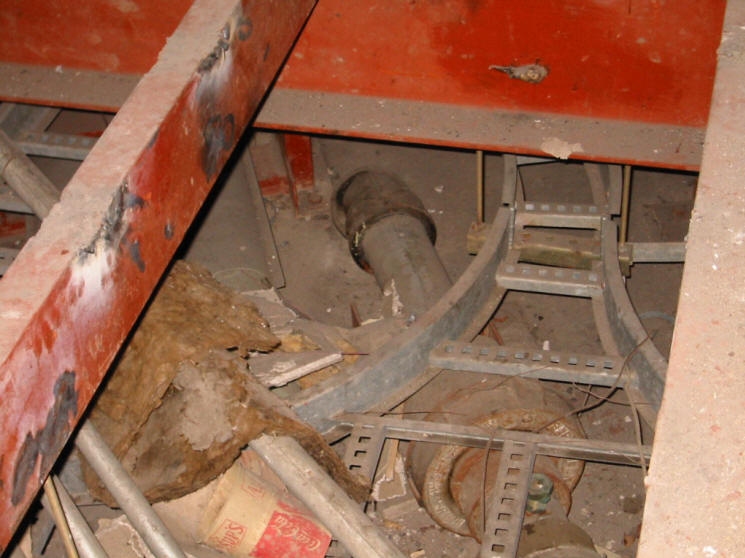

BLAST VESTIBULE FLOORING REMOVED
NOTE: WATER LINES
CABLE WAY
FINAL BLAST DOOR
CABLE WAY FROM SILO BLAST VESTIBULE TO MISSILE SILO
