578th STRATEGIC MISSILE SQUADRON
ATLAS F
DYESS, AFB
ABILENE, TEXAS
SITE 5
ACCESS ROAD TO SITE
NOTE: NON ORIGINAL GATE

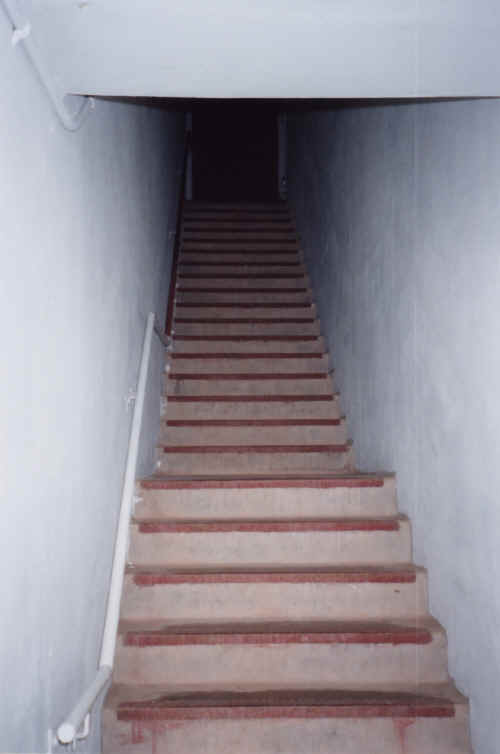

LOOKING UP ENTRYWAY STAIRS
ENTRAPMENT AREA
FIRST BLAST DOOR

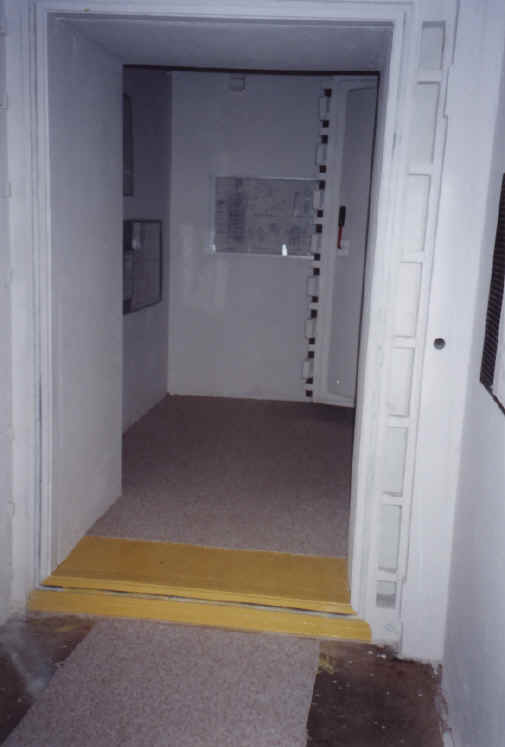

VESTIBULE AREA BETWEEN BLAST DOORS

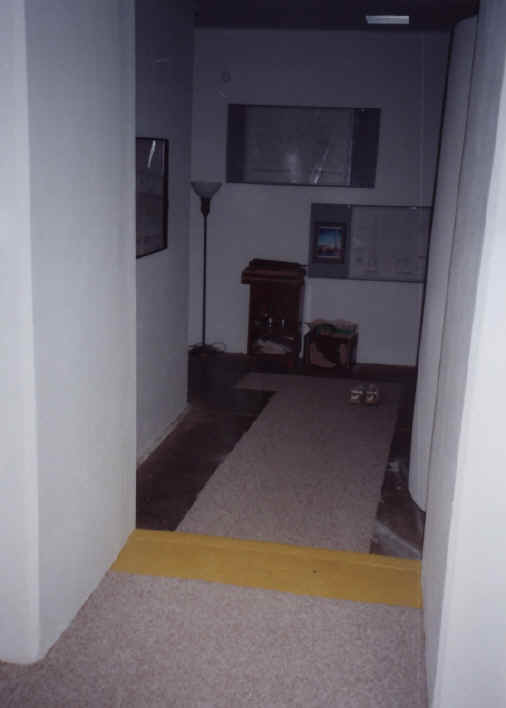

LOOKING BACK INTO VESTIBULE AREA
STAIRWELL

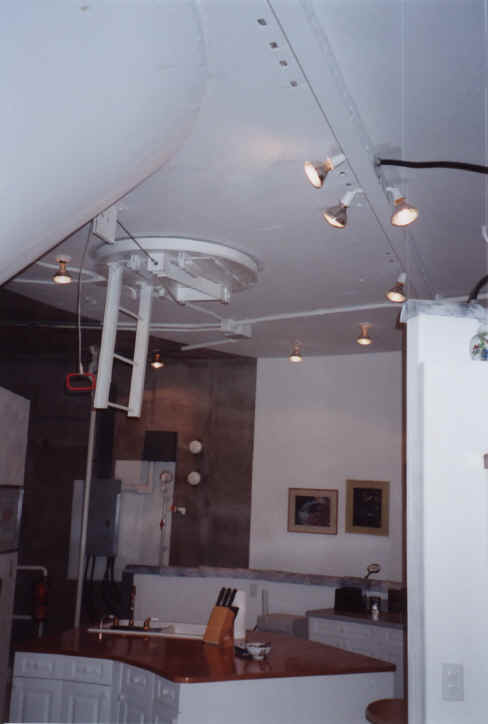

UPPER LEVEL OF LAUNCH CONTROL CENTER
NOTE: ESCAPE HATCH
UPPER LEVEL LCC
NOTE: THIS AREA ONCE WAS THE SLEEPING AREA

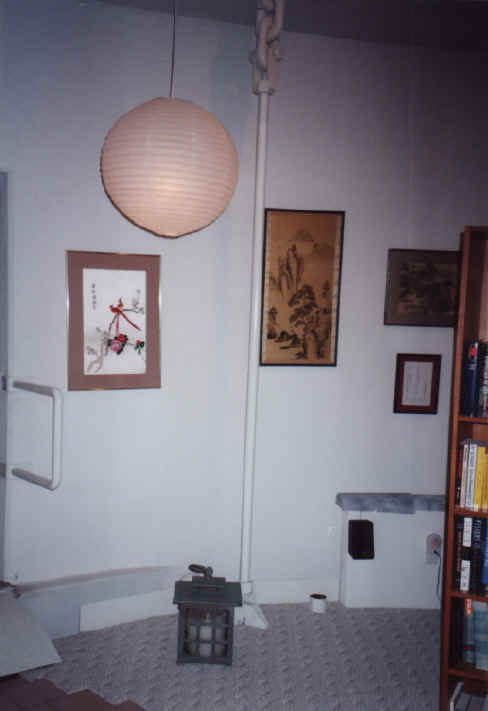

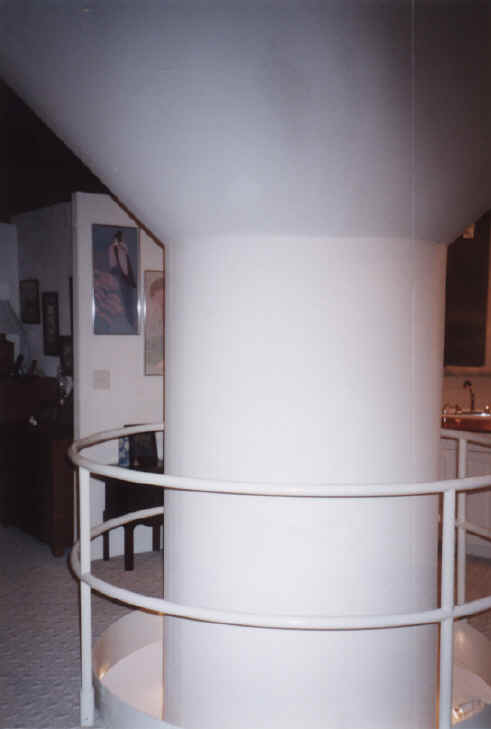

ORIGINAL CENTER COLUMN AND RAILING
THIS AREA ONCE WAS HELD A UTILITY/STORAGE ROOM
NOTE: THE LCC CRIB IS STILL SUSPENDED BUT WITHOUT SHOCKS

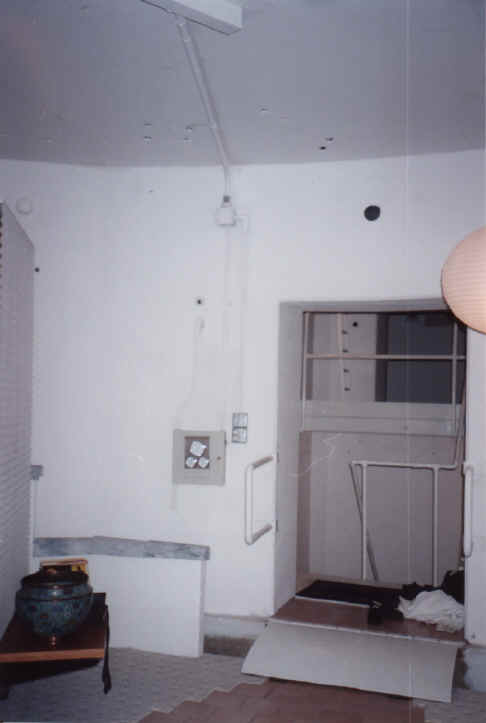

ENTRANCE TO UPPER LEVEL LAUNCH CONTROL CENTER
NOTE: SMALL OPENING ABOVE ENTRANCE AND ELECTRICAL JUNCTION BOX ONCE HELD A SEWER VENT BLAST VALVE

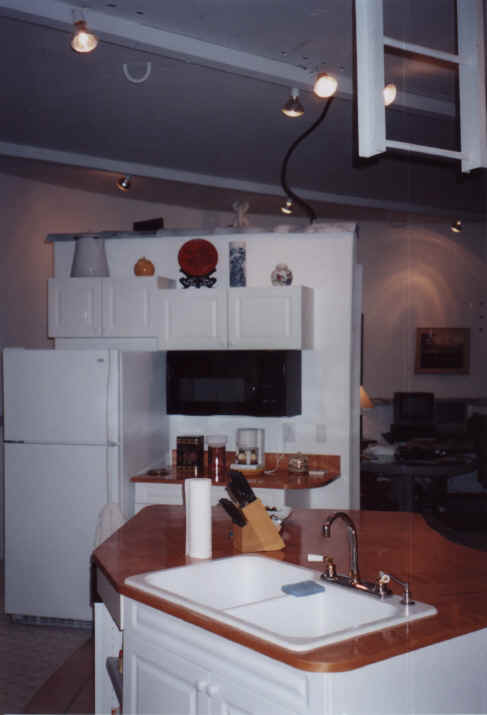

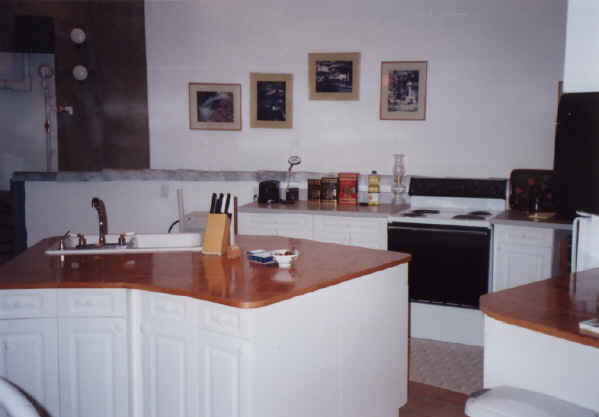

THIS AREA WAS ONCE THE KITCHEN AREA
NOTE: ANOTHER LCC CRIB SUPPORT

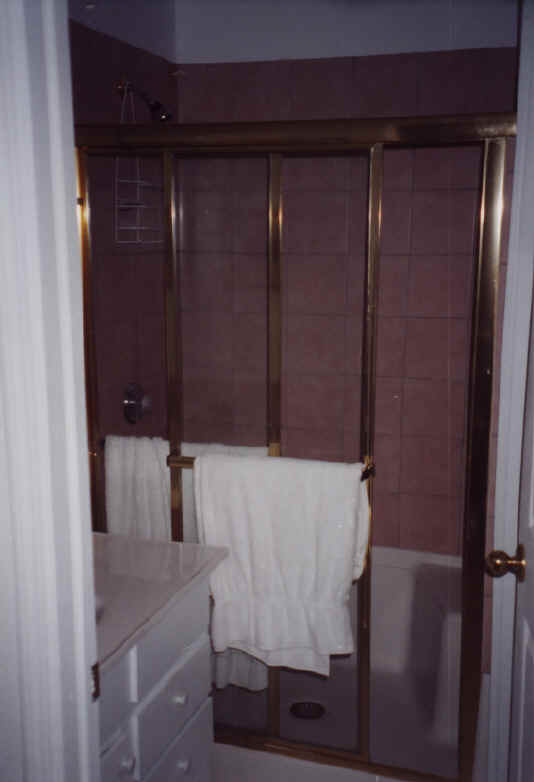

BEAUTIFUL BATHROOM

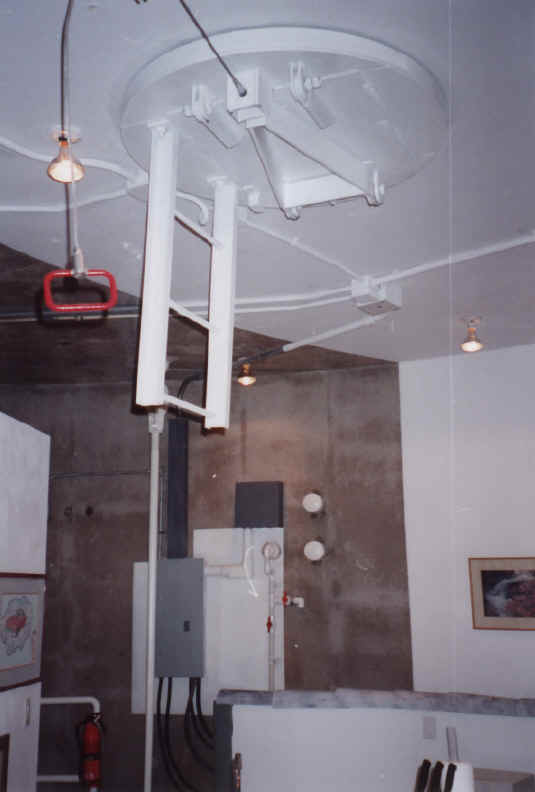

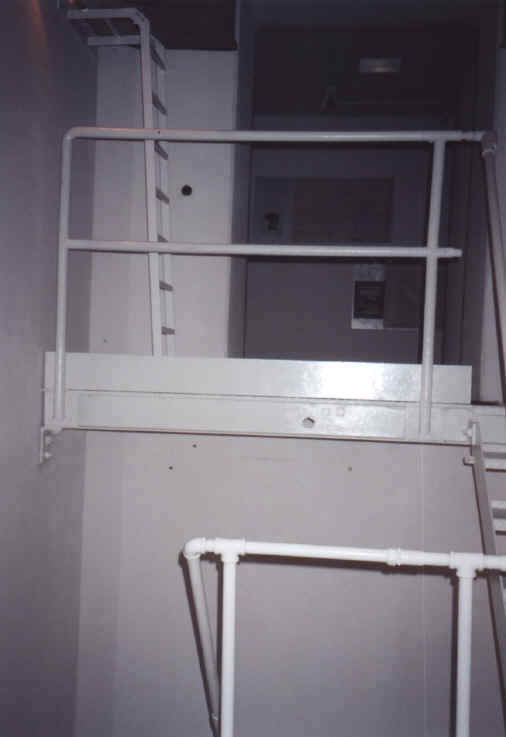

ESCAPE HATCH
NOTE: ELECTRICAL POWER AND WATER ARE BROUGHT IN THROUGH THE COMMUNICATION MANHOLE
LOOKING FROM WHERE THE ORIGINAL RESTROOM ONCE STOOD

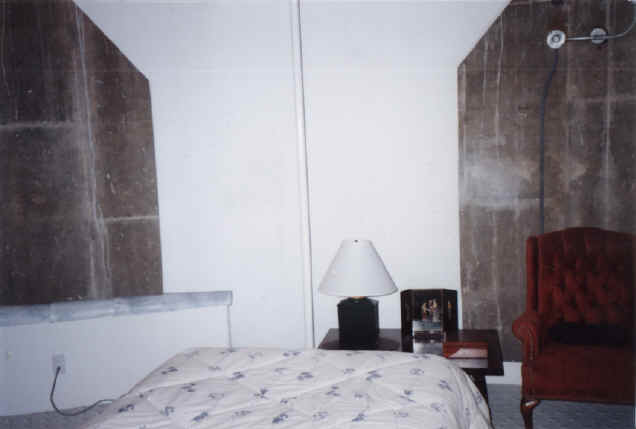

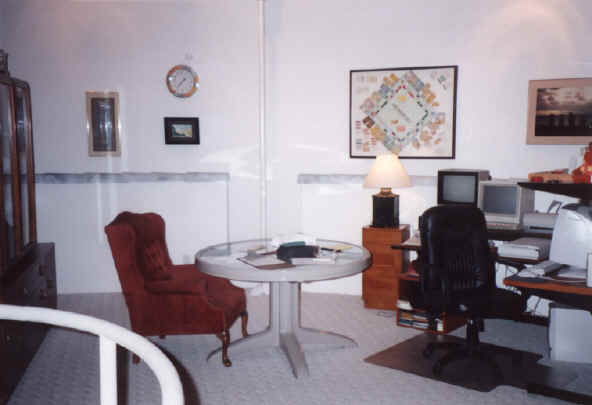

ORIGINAL SLEEPING AREA
NOTE: NEW LCC CRIB SUPPORT
BACK AREA ONCE HELD A MEDICAL STORAGE ROOM ADJACENT TO A HVAC EQUIPMENT ROOM

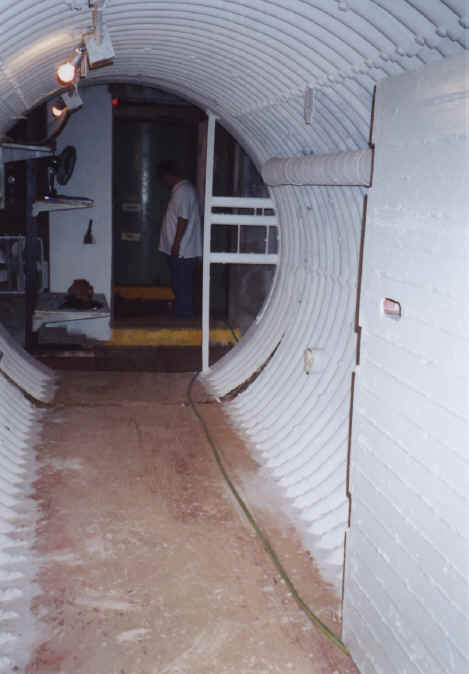

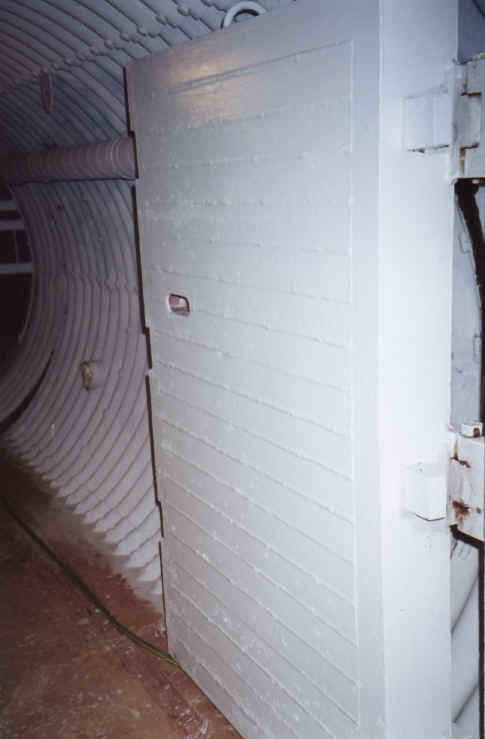

FIRE AND DEBRIS DOOR LEADING TO UTILITY TUNNEL
UTILITY TUNNEL LEADING TO SILO BLAST DOORS
NOTE: ORIGINAL CABLE TRAYS ARE GONE

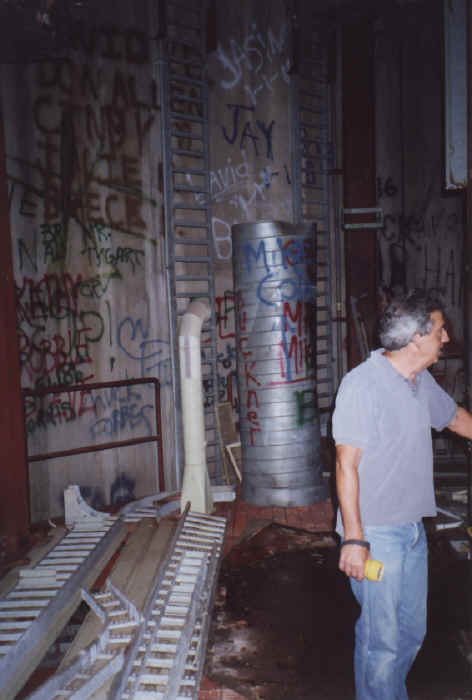

LEVEL TWO MISSILE SILO

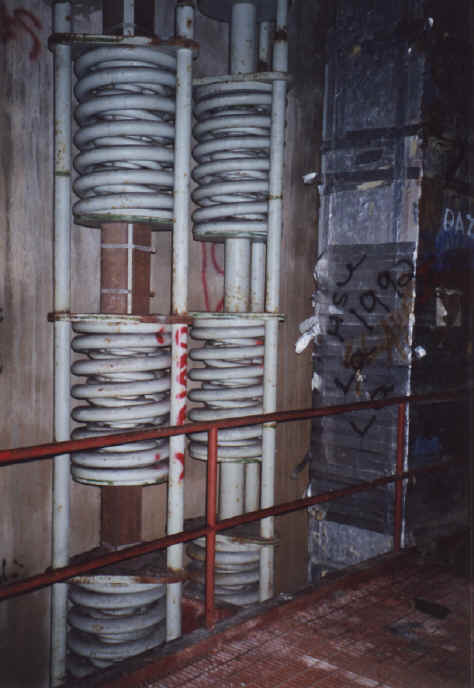

SILO CRIB SHOCKS NEXT TO VENTILATION DUCTING

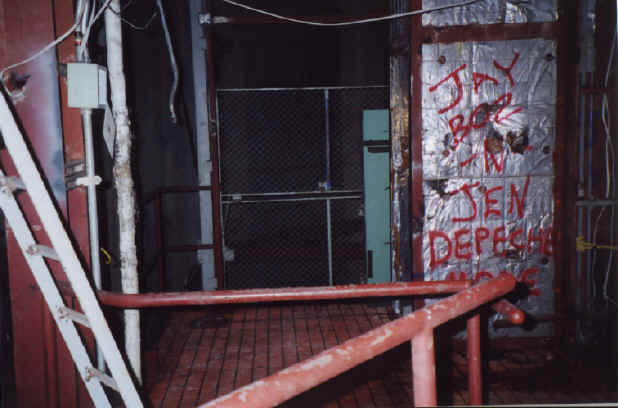

LEVEL TWO LANDING
NOTE: ORIGINAL DOORS FOR PERSONNEL AND FREIGHT ELEVATOR ON LEFT

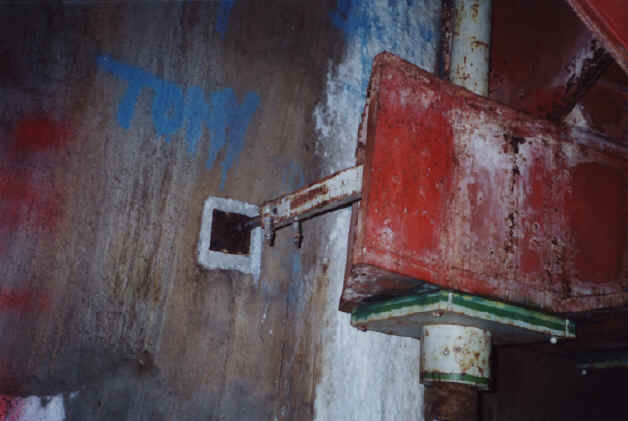

HORIZONTAL CRIB LOCK FOR SILO CRIB SUPPORT SYSTEM

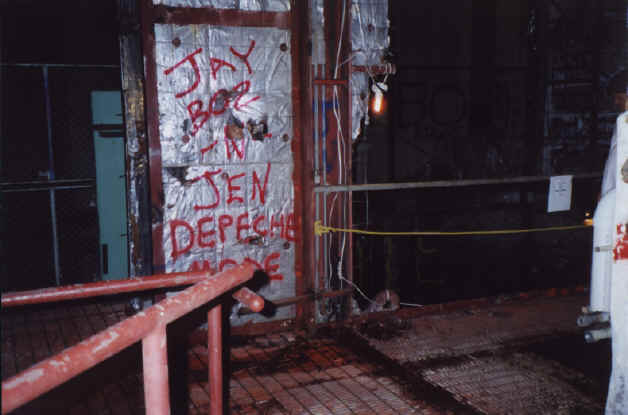

PERSONNEL AND FREIGHT ELEVATOR DOOR

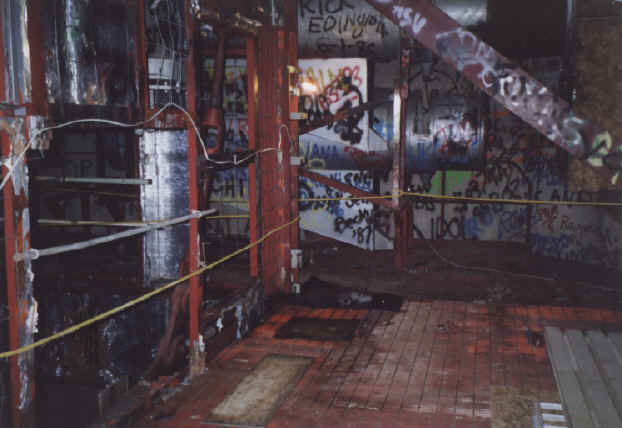

MISSILE ENCLOSURE AREA ON LEFT
NOTE: AIR WASHER AND HANDLING EQUIPMENT IN BACKGROUND

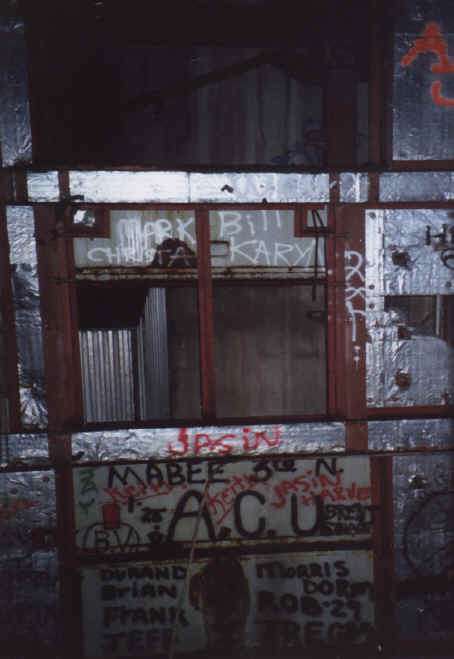

MISSILE ENCLOSURE AREA
OPENING TO FILL AND VENT SHAFT
LEVEL THREE MISSILE SILO

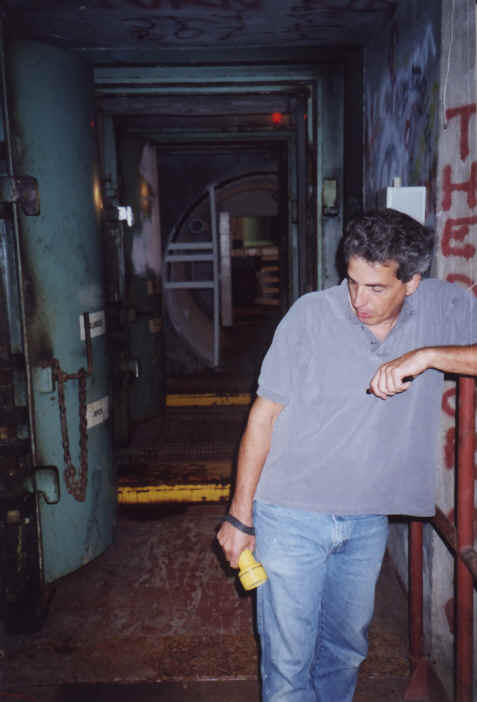

SILO BLAST DOORS LEADING BACK THROUGH UTILITY TUNNEL TO THE LAUNCH CONTROL CENTER
MANY THANKS TO KEN & GWEN NORDMAN FOR SHARING THESE GREAT PHOTOS
