551st STRATEGIC MISSILE SQUADRON
ATLAS F
LINCOLN, AFB NEBRASKA
SITE 8
BEATRICE
REMOVED BLAST VALVE FOR VENT SHAFT
LOOKING TOWARD KITCHEN
KITCHEN
KITCHEN
KITCHEN CABINETS NOT IN ORIGINAL LOCATION
LOOKING TOWARD STAIRWELL
NOTE: UTILITY ROOM & RESTROOM
UTILITY ROOM
THRESHOLD PLATE HAS BEEN REMOVED
ANCHOR POINTS FOR ORIGINAL PNEUMATIC SHOCK SUSPENSION SYSTEM

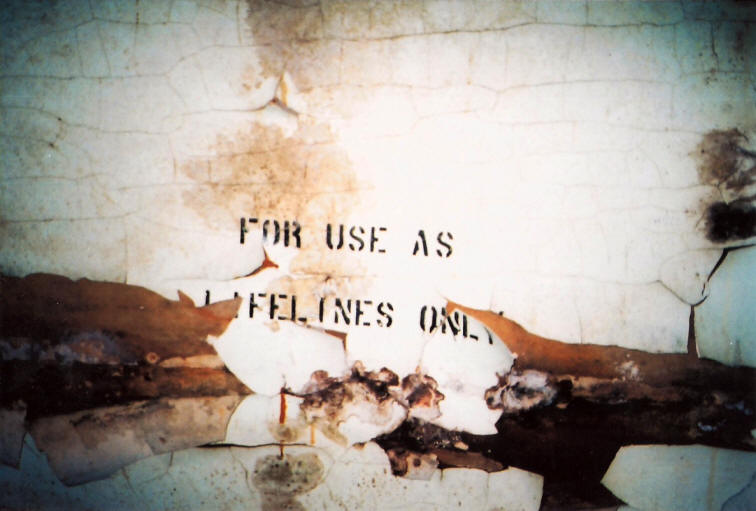

SIGNAGE
PORTION OF ORIGINAL ELECTRICAL GROUNDING PANEL

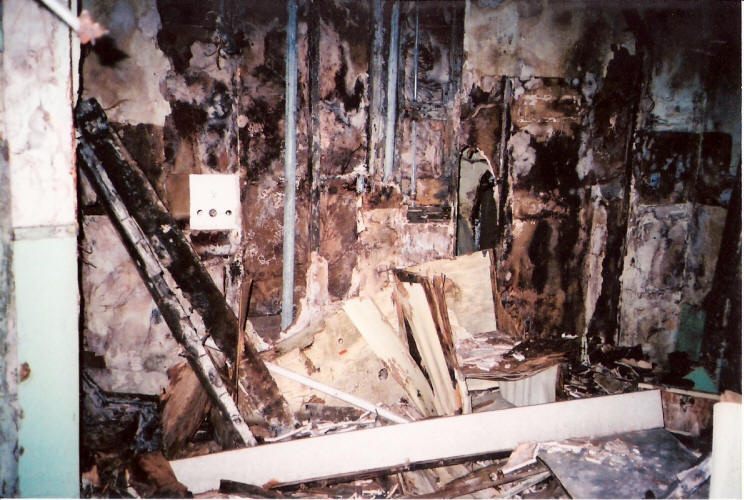

KITCHEN
KITCHEN
RESTROOM SHOWER
RESTROOM SHOWER
RESTROOM SHOWER
RESTROOM
RESTROOM
ESCAPE SHAFT OPENING COVER
ESCAPE SHAFT OPENING COVER
ESCAPE HATCH OPENING HANDLE
LOWER LEVEL LAUNCH CONTROL CENTER
IN FRONT OF THIS ACCESS PANEL WAS THE LAUNCH CONSOLE
UPPER LEVEL PLUMBING
HVAC DUCTING
LOOKING BACK TOWARD STAIRWELL
UPPER LEVEL PLUMBING
BEHIND THIS WALL ON THE RIGHT IS THE CENTER SUPPORT COLUMN
COMMUNICATION AREA
NOTE: BATTERY ROOM ON THE RIGHT
COMMUNICATION PANELS
ELECTRICAL & COMMUNICATION LINES
COMMUNICATION ROOM
HVAC DUCTING
LOOKING FROM STAIRWELL TO COMMUNICATION ROOM DOORWAY
NOTE: PARTIAL DOOR RESTING ON ITS SIDE
LOOKING INTO STAIRWELL AND UTILITY TUNNEL
NOTE: FOLDING DOOR ON THE RIGHT
UTILITY TUNNEL
UTILITY TUNNEL FIRE & DEBRIS DOOR
LOOKING BACK TOWARD STAIRWELL
NOTE: CABLE TRAYS ON THE RIGHT
LIMIT SWITCH FOR FIRE & DEBRIS DOOR
CABLE TRAYS
CABLE TRAYS TO SILO BLAST VESTIBULE
WATER LINES
NOTE: FLEXIBLE HOSES
WATER LINES
WATER LINES
NOTE: 6" MAIN WATER SUPPLY LINE
SILO BLAST VESTIBULE
CABLE TRAYS FOR SILO BLAST VESTIBULE
CABLE TRAYS TO SILO
LOOKING BACK AT UTILITY TUNNEL
CABLE TRAYS
NOTE: BLAST DOOR INTERLOCK SHAFT
BLAST DOOR NUMBER 4
FLOOR GRADING REMOVED FROM SILO BLAST VESTIBULE

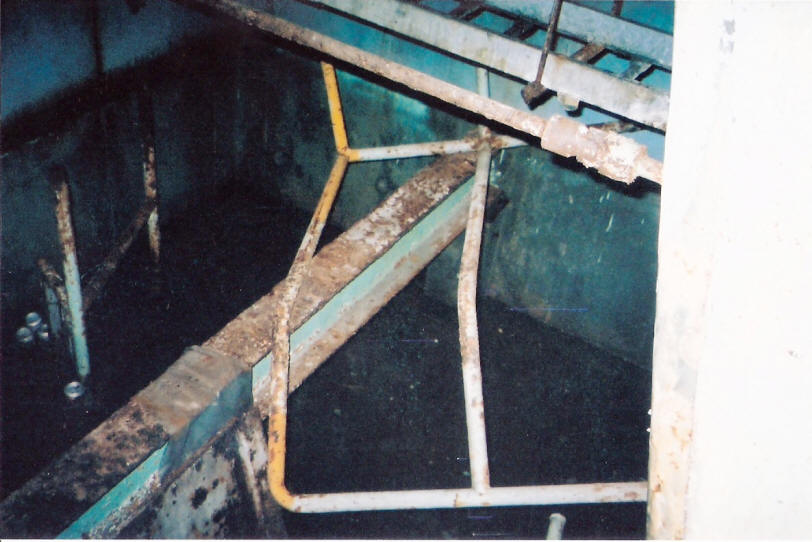

MAIN SUPPORT BEAM FOR STEEL GRADING FLOOR
WATER LINES
CABLE TRAYS TO SILO
SILO SHOCK MOUNTS
SILO DOORS
NOTE: HVAC DUCTING
AIR INTAKE PLENUM
NOTE: BEHIND PLENUM LIES 2 42" AIR INTAKE BLAST VALVES
SILO DOORS
MANY THANKS TO LEE GUIDRY FOR SHARING THESE GREAT PHOTOS
