TITAN II
395th MISSILE TRAINING SQUADRON
VANDENBERG AFB
CALIFORNIA
SITE CHARLIE
PRESENT DAY MISSILE SITE PHOTOS
MAIN GATE
MAIN GATE LOOKING OVER SITE
PARKING AREA
NOTE: SILO CAP AREA IN BACKGROUND
PARKING AREA
INSTALLED ANTENNA
TITAN I MISSILE DISPLAY
NOTE: STAGE I HAS A LARGER DIAMETER THAN STAGE II REQUIRING A TRANSITION SECTION 10FT TO 8FT WHICH IS NOT REQUIRED ON THE TITAN II. STAGE II IS ALSO EQUIPPED (TRANSITION FARING) FOR A MARK IV WARHEAD, WHICH IS NOT A NORMAL TITAN II CONFIGURATION
SLIDING SILO DOOR
OTHER PARKING AREA
NOTE: ACCESS PORTAL ON RIGHT

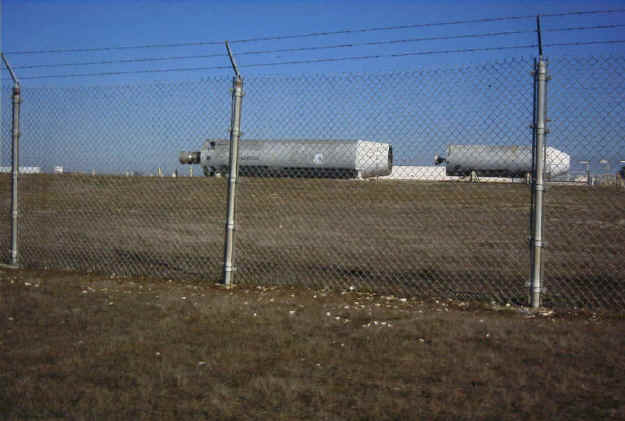

FIRST AND SECOND STAGE OF TITAN I MISSILE
LOADING AREA
CLOSE-UP OF LOADING AREA
SILO CAP
SILO CAP AND FIRST STAGE OF TITAN II
NOTE: AIR SHAFT FOR EQUIPMENT AREAS LEVEL 3 & 4
EVAPORATION POND
NOTE: STILL IN OPERATION
EVAPORATION POND
SILO CAP WITH SECOND STAGE TITAN I MISSILE
ACCESS PORTAL TO BLAST LOCK
VENTILATION AND ESCAPE SHAFT FOR LAUNCH CONTROL CENTER
NOTE: ACCESS PORTAL BEHIND
CLOSE-UP OF ESCAPE AND VENTILATION SHAFT
